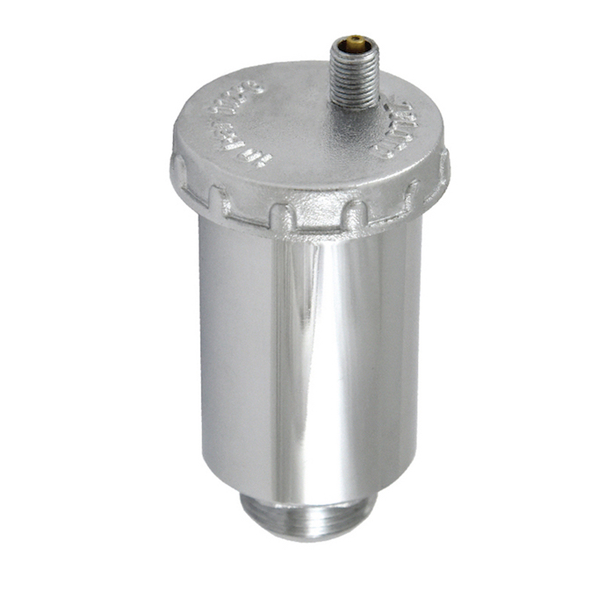

The Zoloto 1095 - 20 mm Forged Brass Screwed Air Release Valve is a regulatory device used to release air pockets collected in industrial and domestic water pipeline systems. The Brass Screwed Air Release Valve is generally used for protection against water hammers and improving pipeline efficiency. The 20 mm Forged Brass Screwed Air Release Valve can be installed in pipelines where the velocity is greater than 2.0-m/s. The Air Release Valve is ideally positioned at system high points vertically, with the inlet facing down. It has a Screwed male end, manufactured as per IS 554 / BS 21 / ISO 7. The Zoloto - 20 mm Forged Brass Screwed Air Release Valve has a test pressure of 15 bar. The Zoloto - 20 mm Forged Brass Screwed Air Release Valve has chrome plating to protect it against corrosion.
Product Specifications:
Product: Screwed Air Release Valve
Brand: Zoloto
Model: 1095
Size: 20 mm
Material: Forged Brass
Plating: Chrome
Test Pressure: 15 bar
Made in: India
Key Features:
Good efficiency
Reduce pressure loss
Ease of installation
