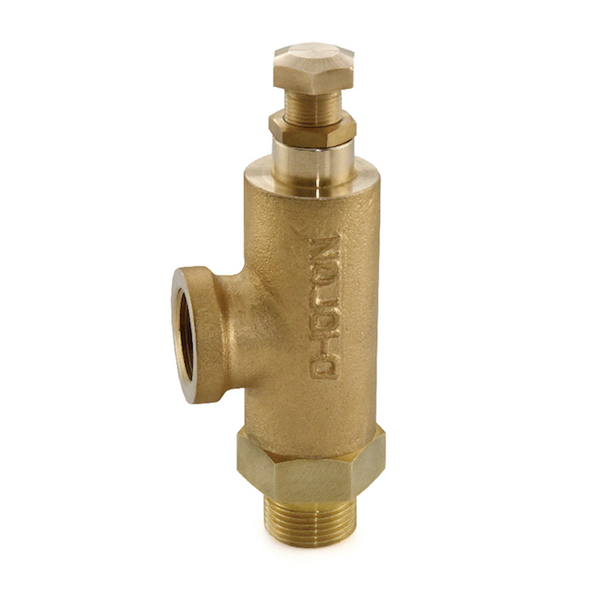

The Zoloto - 50 mm Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve is a multi-use unit suitable for water, oil and air. The 50 mm Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve features a male connection end following the IS 554 / BS 21 / ISO7 standard. The Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve features a non-reactive bronze body and components. The Enclosed Discharge Spring Loaded Safety Relief Valve has a BSP thread female connection on the lateral side. The Spring Loaded Safety Relief Valve has an enclosed design preventing the ingress of contaminants from the atmosphere. Therefore, the Safety Relief Valve may come in great use for the industrial sector.
Product Specifications:
Country of Origin: India
Product Code: 1094A
Manufactured by: Zoloto
Size: 50 mm
Hydrostatic Test Pressure: Shell: 21.10 kg/cm²g (300 psig)
10.55 kg/cm²g (150 psig)
Set Pressure Range : 0-10 kg/cm²g (Max.)
Suitable for: Water, Oil and Air
Maximum Working Temperature: 80° C
Body Material: Bronze
Male Connection End: IS 554 / BS 21 / ISO7
Key Features:
Safe
Compact design
