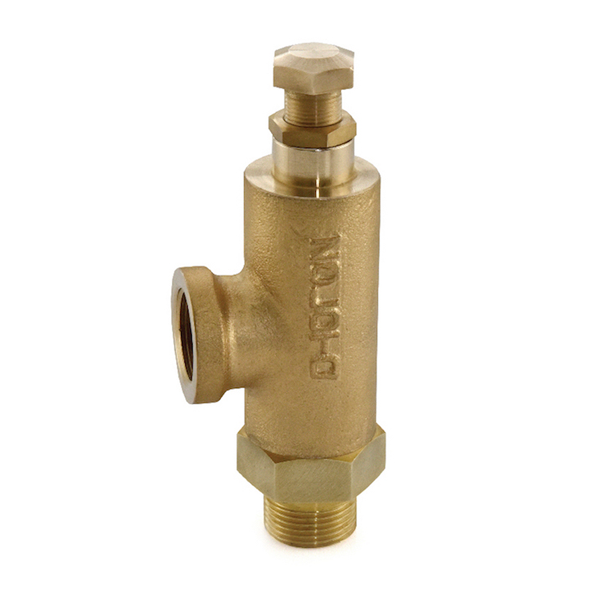

The Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve is Zoloto’s best-selling Safety Relief Valve variant. This 40 mm Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve ensures that persons and property get protection against various catastrophic failures. Furthermore, this Spring Loaded Safety Relief Valve allows for precise blow-off pressure control. This Enclosed Discharge Spring Loaded Safety Relief Valve also comes with an adjustable blowdown and is ideal for use in water boilers, steam pipes, and autoclaves. Additionally, this safety relief valve has an uninterrupted seat bore. As a result, the Zoloto - 40 mm Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve is one of the best options for circumstances when blowdown tolerance is crucial.
Product Specifications:
Manufactured by: Zoloto
Model: 1094 A
Material: Bronze
Size: 40 mm
Test Pressure (Hydrostatic): Shell: 21.10 kg/cm²g (300 psig)
Seat: 10.55 kg/cm²g (150 psig)
Set Pressure Range: 0 - 10 kg/cm²g (Max.)
Maximum Working Temperature: 80°C
Suitable for: Water, oil and air
Key Features:
Proper blow-off pressure.
Well-polished with good surface finishing.
Offer maximum discharge capacity.
