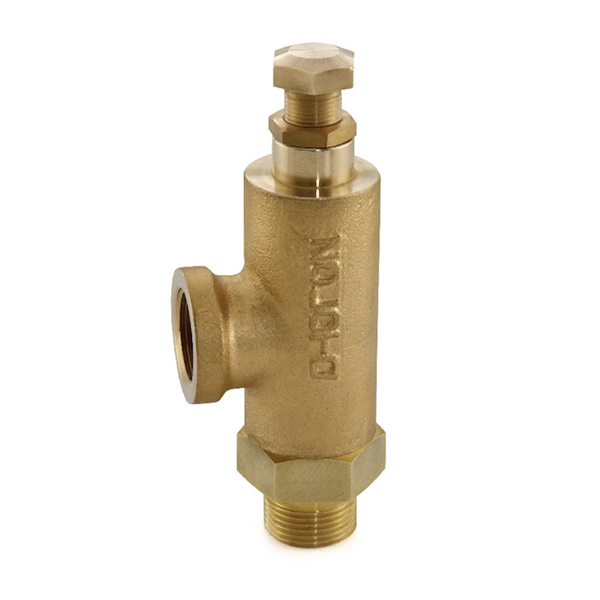

The 32 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is free from rust, enhancing life expectancy. Because device complexity directly connects to device dependability, the design of the Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is the only device to prevent a catastrophic failure. The material used in manufacturing the Zoloto 32 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is bronze. The Spring Loaded Safety Relief Valve has male end connections. The spring load adjusts to change the pressure at which the valve opens. The size of the Safety Relief Valve is 32 mm. The Spring Loaded Safety Relief Valve is an Enclosed Discharge Type. The Spring Loaded Safety Relief Valve has a compact structure, suitable for various applications.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 80°C
Model: 1094A
Material: Bronze
End Connection: Male Ends
Test Pressure(Hydrostatic): Shell: 21.10 kg/cm²g (700psig)
Set Pressure Range: 0-10 kg/cm²g (Max.)
Size: 32 mm
Suitable for: Water, Oil
Type: Spring Loaded Safety Relief Valve
Key Features:
Enclosed Discharge Type
Material Compatibility
Metal to Rubber contact seating
Overpressure Protection
Compact Structure
Rust Proof
Suitable for Water and Oil
Screwed Male End to IS 554 / BS 21 / ISO 7
