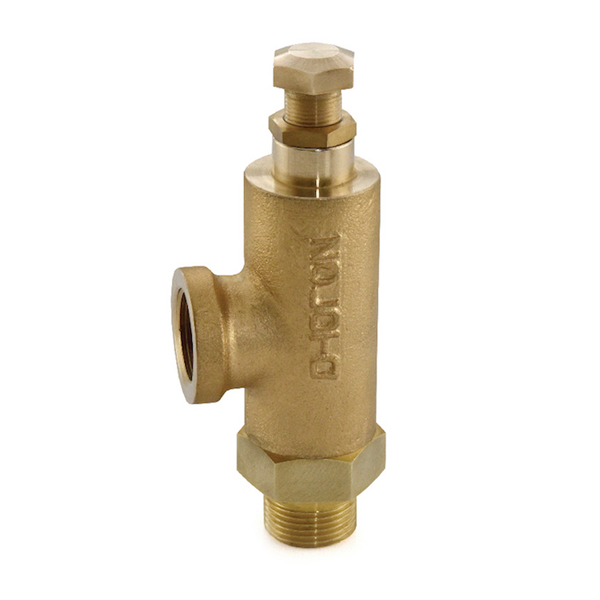

One of the best models of the Safety Relief Valve manufactured by Zoloto is the 1094A - 25 mm Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve. This Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve safeguards people and property from various catastrophic failures. In addition, this Enclosed Discharge Spring Loaded Safety Relief Valve provides a correct setting for proper pressure blow-off. This Spring Loaded Safety Relief Valve also consists of an adjustable blowdown and is perfect for water boilers, steam pipelines, and autoclaves. The Zoloto - 25 mm Bronze Screwed Enclosed Discharge Spring Loaded Safety Relief Valve is thus considered one of the ideal choices for situations where blowdown tolerance is essentially critical.
Product Specifications:
Manufactured by: Zoloto
Model: 1094 A
Material: Bronze
Size: 25 mm
Test Pressure (Hydrostatic): Shell: 21.10 kg/cm²g (300 psig)
Seat: 10.55 kg/cm²g (150 psig)
Set Pressure Range: 0 - 10 kg/cm²g (Max.)
Maximum Working Temperature: 80°C
Suitable for: Water, oil and air
Key Features:
Offer an exceptional discharge capacity.
Precision lapped Nozzle.
Strong and durable.
