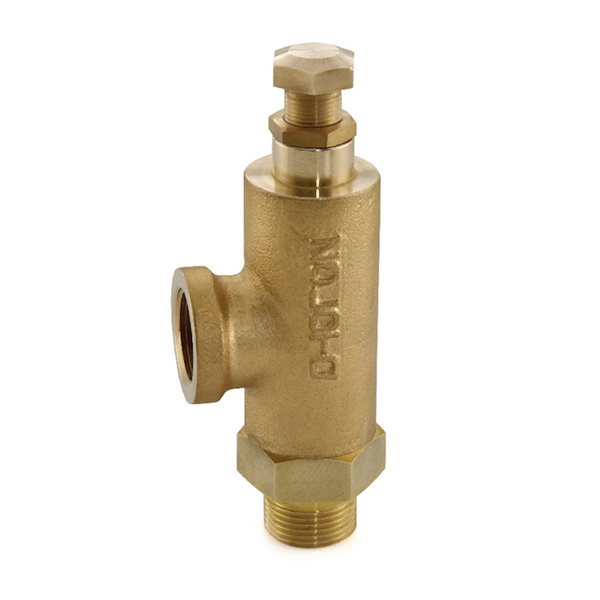

The 20 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve has an enclosed discharge spring. Because device complexity directly connects to device dependability, the design of the Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is as simple as possible to operate in a consistently smooth and stable way on a wide range of fluids and fluid phases. In addition, the Zoloto 20 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is lightweight for performance enhancement. The Spring Loaded Safety Relief Valve consists of a Valve inlet or nozzle located on the pressured system, a disc pressed against the nozzle to block flow under normal system operating circumstances, a spring to keep the disc closed, and a body/bonnet to house the operational parts. The spring load adjusts to change the pressure at which the valve opens. The size of the Safety Relief Valve is 20 mm.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 80°C
Model: 1094A
Material: Bronze
End Connection: Male Ends
Test Pressure(Hydrostatic): Shell: 21.10 kg/cm²g (700psig)
Set Pressure Range: 0-10 kg/cm²g (Max.)
Size: 20 mm
Suitable for: Water, Oil
Type: Spring Loaded Safety Relief Valve
Key Features:
Enclosed Discharge Type
Material Compatibility
Metal to Rubber contact seating
Overpressure Protection
Light Weight
Rust Proof
Suitable for Water and Oil
Screwed Male End to IS 554 / BS 21 / ISO 7
