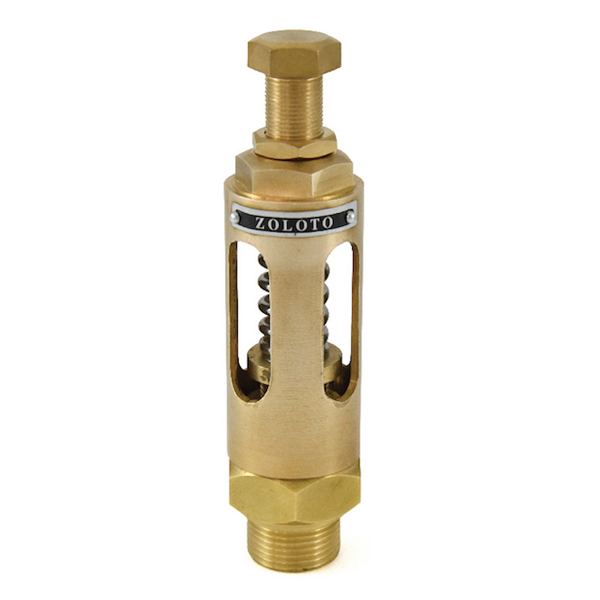

The 40 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is a reliable product manufactured by Zoloto. The primary purpose of this Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is to keep property and people safe. The Safety Relief Valve is frequently the last line of defence against catastrophic failure under pressure. The Zoloto - 40 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is one such device that delivers safety. This Open Discharge Spring Loaded Safety Relief Valve can perform well whenever the maximum permitted working pressure of a system, or pressure-containing vessel is likely to be exceeded, especially when another piece of equipment in the system fails. In addition, this Spring Loaded Safety Relief Valve resists metal fatigue better by being made up of top-notch quality bronze.
Product Specifications:
Manufactured by: Zoloto
Model: 1094
Material: Bronze and rubber
Size: 40 mm
Test Pressure (Hydrostatic): Shell: 21.10 kg/cm²g (300 psig)
Seat: 10.55 kg/cm²g (150 psig)
Set Pressure Range: 0 - 10 kg/cm²g (Max.)
Maximum Working Temperature: 80°C
Suitable for: Water, oil and air
Key Features:
Metal fatigue and corrosion-resistant.
Rugged and robust material.
