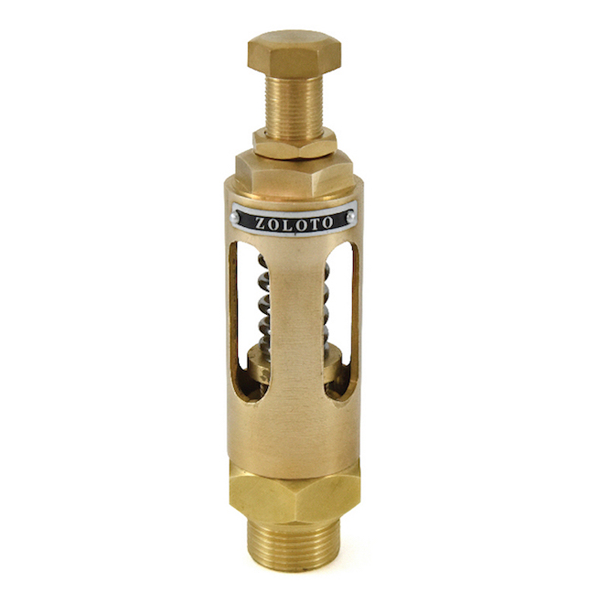

A Spring Loaded Safety Relief Valve is a safety device that protects a pressurised vessel or system from overpressure in the case of such occurrence. An Open Discharge Spring Loaded Safety Relief Valve is appropriate for various applications to protect tanks, pipes, and containers against over-pressurisation. Zoloto - 20 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve’s primary function is safeguarding people and property by expelling fluid from an overpressurised vessel. Being composed of bronze, this 20 mm Bronze Screwed Open Discharge Spring Loaded Safety Relief Valve is a reliable and corrosion free device.
Product Specifications:
Manufactured by: Zoloto
Product Type: Safety Relief
Model: Open Discharge
Material: Bronze
Size: 20 mm
End Connection: Screwed Male Body
Test Pressure: 21.10 Kg/cm2gSeat
Test Pressure: 10.55 Kg/cm2g
Set Pressure Range: 0 - 10 kg/cm²g (Max.)
Maximum Working Temperature: 80°C
Suitable for: Water, oil and air
Key Features:
Screwed Male End to IS 554/BS 21/ ISO7
Open Discharge Type
Metal to rubber Contact seating
Screwed
Hydrostatic Test pressure
