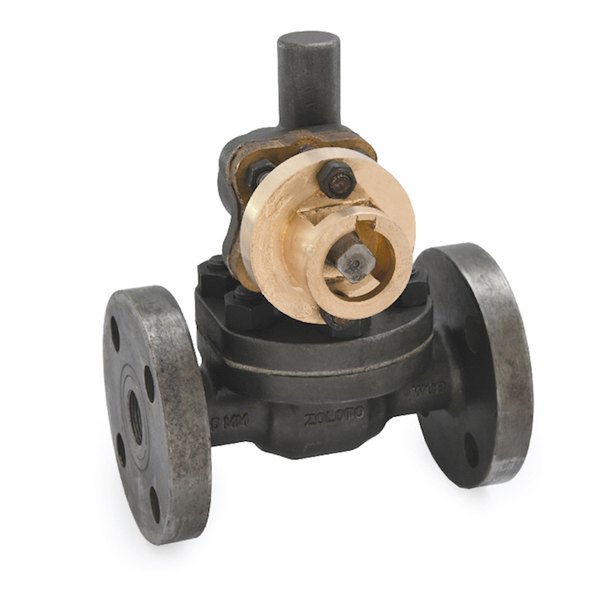

Because of the sliding movement of the discs, the Zoloto 40 mm Cast Steel Flanged Parallel Slide Blow Off Valve maintains fluid-tightness while still being accessible in operation. In 40 mm Cast Steel Flanged Parallel Slide Blow Off Valve, the gland forms a locking guard that prevents the key's removal unless the valve is closed. The Ball off Valve Valve has a bronze rack and bolted bonnet. The material used in manufacturing the Cast Steel Flanged Parallel Slide Blow Off Valve is cast-steel for the corrosive free body and greater life expectancy. The Discs in Flanged Parallel Slide Blow Off Valve gets kept in close contact with body rings through spring when the valve is under pressure. The Flanged Parallel Slide Blow Off Valve comes with a premium lubricated gland packing and alloy steel studs. The model number of the Ball off Valve is 1092.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 425°C
Model: 1092
Material: Cast Steel
Female Disc: Stainless Steel
Test Pressure(Hydrostatic): Shell: 48 kg/cm²g (700psig)
Size: 40 mm
Studs: Alloy Steel
Suitable for: Water, Steam
Type: Flanged Parallel Slide Blow Off Valve
Key Features:
Flanged Ends to BS 10 Table 'J'
Bolted Bonnet
Bronze Rack
Rust Proof
Maintain Fluid Tightness
Lubricated Gland Packing
Maximum Performance
Premium Quality Product
