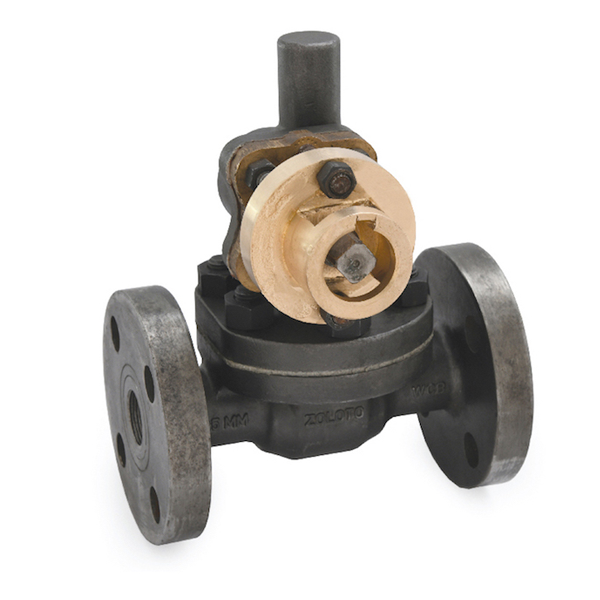

The 32 mm Cast Steel Flanged Parallel Slide Blow Off Valve, manufactured by Zoloto, is a unique product consisting of Flanged ends to BS 10 Table ‘J’. The blow-off valve maintains fluid-tightness and is easy to operate because of the sliding actions of discs. These discs are kept in close contact with body rings using spring when the Blow Off Valve is under pressure. The primary purpose of Zoloto - 32 mm Cast Steel Flanged Parallel Slide Blow Off Valve is to unload the turbocharger when the throttle closes suddenly. Therefore, this Cast Steel Flanged Parallel Slide Blow Off Valve can serve various turbocharged engines.
Product Specifications:
Manufactured By: Zoloto
Mode: 1092
Size: 32mm
Material: Cast Steel
Type: Parallel slide blow off
Test Pressure (Hydrostatic): Shell: 48 kg/cm²g (700 psig)
Test Pressure (Steam): Seat: 24.50 kg/cm²g (350 psig)
Maximum Working Temperature: 425°C
Suitable for: Steam and water
Key Features:
Its flanged ends meet BS 10 Table J.
The valve is easy to operate, and the disks keep close contact with the body rings through spring when under pressure.
The valve comes with a lubricated gland pack and a bolted bonnet.
Standard quality manufacturing
