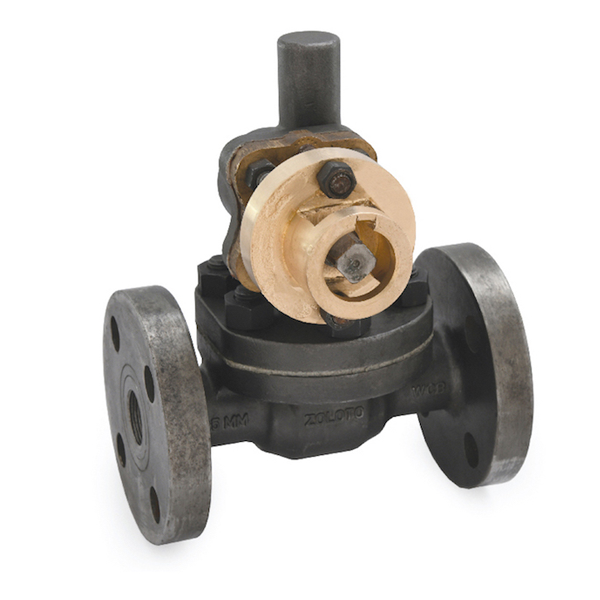

The Zoloto 25 mm Cast Steel Flanged Parallel Slide Blow Off Valve maintains fluid-tightness and is accessible in operation because of the sliding action of discs. The 25 mm Cast Steel Flanged Parallel Slide Blow Off Valve is a premium quality product from Zoloto designed and manufactured in India for delivering desired results. The material used in manufacturing the Cast Steel Flanged Parallel Slide Blow Off Valve is cast-steel for the corrosive free body and greater life expectancy. The size of the Ball off Valve is 25 mm. The Discs in Flanged Parallel Slide Blow Off Valve are kept in close contact with body rings using spring when the valve is under pressure. The Flanged Parallel Slide Blow Off Valve has premium lubricated Gland Packing and Bolted Bonnet. The maximum temperature a Ball off Valve can handle 425°C. The Ball off Valve gets operated employing Rack and Pinion arrangement, in such a manner that the valve is opened thoroughly with half turn of the box key.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 425°C
Model: 1092
Material: Cast Steel
Spring: Stainless Steel
Test Pressure(Hydrostatic): Shell: 48 kg/cm²g (700psig)
Size: 25 mm
Studs: Alloy Steel
Suitable for: Water, Steam
Type: Flanged Parallel Slide Blow Off Valve
Key Features:
Flanged Ends to BS 10 Table 'J'
Bolted Bonnet
Long-Lasting
Maintain Fluid Tightness
Lubricated Gland Packing
Maximum Performance
Premium Quality Product
