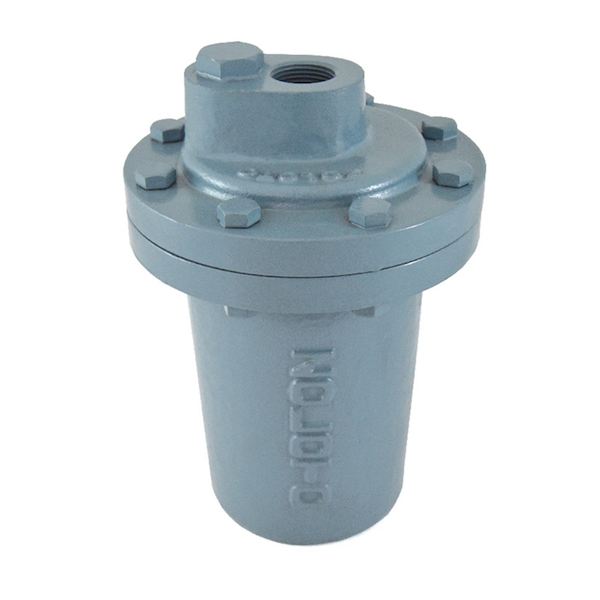

The 50 mm Cast Iron Screwed Bucket Type Steam Trap, manufactured by Zoloto, is a unique device that includes an inverted bucket and a bolted cover. The Bucket Type Steam Trap lever connects to the bucket inside the steam trap. When steam or air gets inside the bucket, the moisture causes the bucket to lift and become buoyant. The Zoloto - 50 mm Cast Iron Screwed Bucket Type Steam Trap is ideal for steam and air in various industrial applications. The Cast Iron Screwed Bucket Type Steam Trap is especially well-known for its versatility. Female ends fitted into BSP with inverted bucket type complete the Steam Trap.
Product Specifications:
Manufactured by: Zoloto
Model: 1090
Material: Cast Iron
Size: 50 mm
Suitable for: Steam
Test Pressure (Hydrostatic): Shell: 31 kg/cm²g (440psig)
Seat: 21kg/cm²g (300 psig)
Seat (Steam): 10.55 kg/cm²g (150 psig)
Maximum Working Temperature: 220°C
Key Features:
Powerful and indispensable tool.
Free from corrosive effects.
Sturdy and easy to handle.
