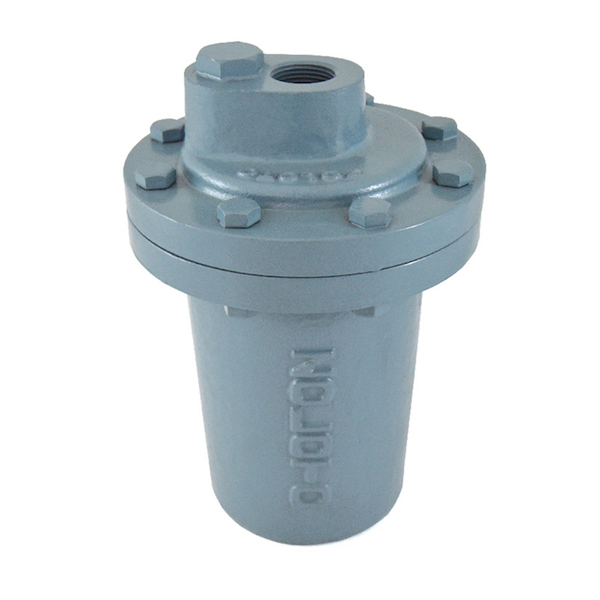

The Cast Iron Screwed Bucket Type Steam Trap works using the temperature differential between condensate near steam temperature and sub-cooled condensate (or low-temperature air). The Zoloto 40 mm Cast Iron Screwed Bucket Type Steam Trap provides a low-cost alternative for basic applications. The material used in manufacturing the 40 mm Cast Iron Screwed Bucket Type Steam Trap is cast-steel for a smooth body and sturdy finish. The size of the Ball Valve is 40 mm. The Screwed Bucket Type Steam Trap conserves energy by avoiding steam leaks and expelling non-condensing gases such as air. The Bucket Type Steam Trap has Screwed Female Ends to BSP. The maximum temperature a Steam Trap can handle is 220°C. The Screwed Bucket Type Steam Trap is inverted Bucket Type and bolted cover. The Bucket Type Steam Trap has a maximum working pressure of 10.55 kg/cm²g (150 psig). The Ball Valve provides significant and distinctive performance characteristics due to its unique design.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 220°C
Model: 1090
Material: Cast Steel
Bucket Material: Stainless Steel
Test Pressure(Hydrostatic): Shell : 21.10 kg/cm²g (300psig)
Maximum Working Pressure: 10.55 kg/cm²g (150 psig)
Size: 40 mm
Suitable for: Water/Steam/Oil
Type: Screwed Bucket Type Steam Trap
Key Features:
Screwed Female Ends to Bsp
Inverted Bucket Type
Bolted Cover
Stainless Steel Renewable Working Parts
Screwed Bucket Type
Iron Cast Cover
Maximum Performance.
Premium Quality Product
