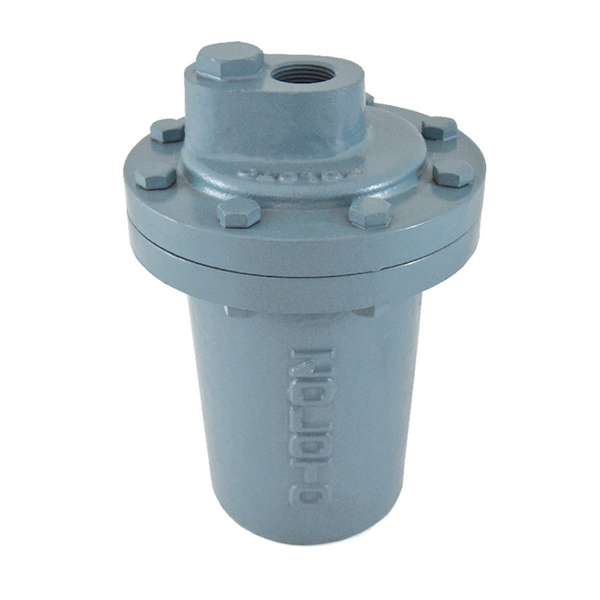

Zoloto - 25 mm Cast Iron Screwed Bucket Type Steam Trap is a unique product that consists of an Inverted type bucket and bolted Cover. The bucket within the steam trap is attached to the lever. When steam or air flows into the underside of the bucket, the moisture causes the bucket to become buoyant and rise. The 25 mm Cast Iron Screwed Bucket Type Steam Trap finds various industrial applications useful for steam and air. Cast Iron Screwed Bucket Type Steam Trap is mainly known for its multi-functional nature. The Bucket Type Steam Trap additionally consists of female ends screwed into BSP with inverted bucket type.
Product Specifications:
Manufactured by: Zoloto
Model No: 1090
Size: 25 mm
Sub Type: Type Bucket
Material: Cast Iron
Product Type: Steam Trap
Suitable for: Steam
Test Pressure (Hydrostatic): Shell: 31 kg/cm²g (440psig)
Seat: 21kg/cm²g (300 psig)
Seat (Steam): 10.55 kg/cm²g (150 psig)
Maximum Working Temperature: 220°C
Key Features:
The female ends screwed into BSP.
Renewable and reusable working parts.
Bolted Cover with stainless steel AISI 304 working parts.
