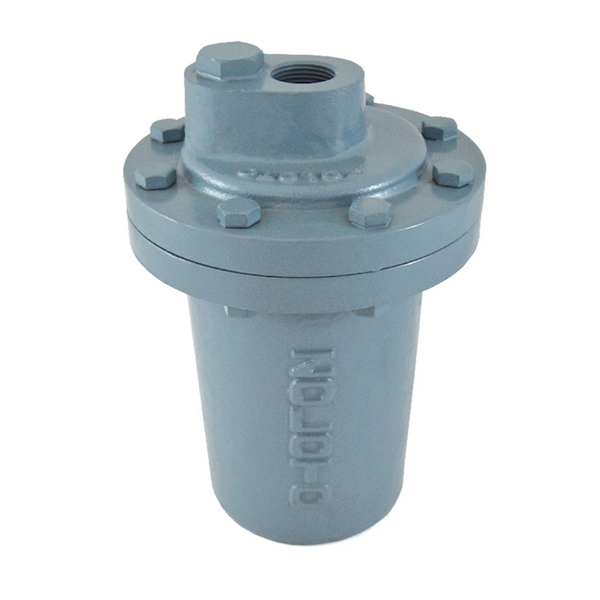

The Zoloto 20 mm Cast Iron Screwed Bucket Type Steam Trap has bolted cover for sturdiness. The material used in manufacturing the 20 mm Cast Iron Screwed Bucket Type Steam Trap is cast-steel for the rust proof body and greater life expectancy. The primary function of the Cast Iron Screwed Bucket Type Steam Trap is to rapidly discharge condensate that has developed in steam distribution lines, steam tracers, and steam-using equipment. The size of the Ball Valve is 20 mm. The Screwed Bucket Type Steam Trap conserves energy by avoiding steam leaks and expelling non-condensing gases such as air. The Bucket Type Steam Trap has Screwed Female Ends to BSP. The maximum temperature a Steam Trap can handle is 220°C. The Screwed Bucket Type Steam Trap is inverted Bucket Type and bolted cover. The Bucket Type Steam Trap comes with Stainless Steel (SS 304) renewable working parts.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 220°C
Model: 1090
Material: Cast Steel
Bucket Material: Stainless Steel
Test Pressure(Hydrostatic): Shell: 21.10 kg/cm²g (300psig)
Maximum Working Pressure: 10.55 kg/cm²g (150 psig)
Size: 20 mm
Suitable for: Water/Steam/Oil
Type: Screwed Bucket Type Steam Trap
Key Features:
Anti-Corrosion
Inverted Bucket Type
Bolted Cover
Stainless Steel Renewable Working Parts
Energy Saving
Iron Cast Cover
Maximum Performance.
Premium Quality Product
