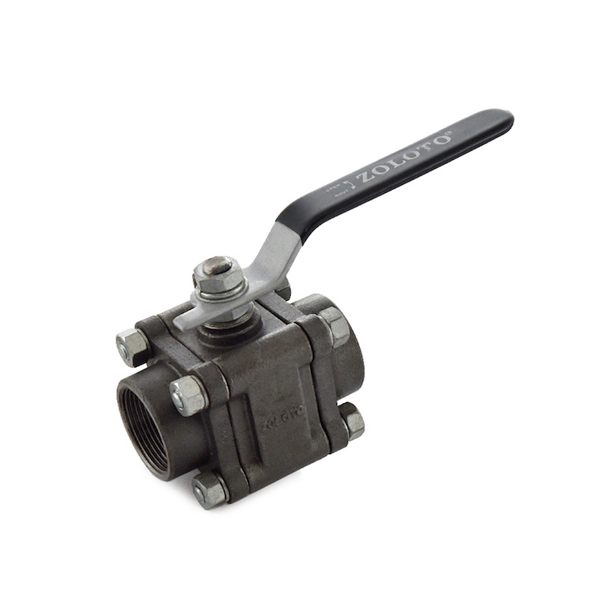

The Zoloto - 50 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve is a flow control device that uses a hollow, perforated, pivoting ball to control liquid flow through it. This device is open when the ball’s hole is parallel to the flow inlet and closed on pivoting the handle at 90 degrees, obstructing the flow. The Class 150 Cast Steel Screwed, Three Piece Design Ball Valve makes it simple to regularly replace old seats, seals, and other components. The three-piece mechanism makes it simple to disassemble, clean, service, and reassemble the pipe without cutting this Three Piece Design Ball Valve. You may quickly swap elastomers on 50 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valves to handle a variety of process pressures, temperatures, flows, and conditions. The Zoloto - 50 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve makes welding them in place much more accessible.
Product Specifications:
Manufactured by: Zoloto
Model: 1088
Material: Cast Iron
Size: 50 mm
Class: 150
Suitable for: Steam, Water and Oil
Test Pressure (Hydrostatic): Shell: 31 kg/cm²g (440psig)
Seat: 21kg/cm²g (300 psig)
Seat (Steam): 10.55 kg/cm²g (150 psig)
Maximum Working Temperature: 220°C
Key Features:
It is easy to disassemble this ball valve.
Capable of handling a wide variety of process pressures.
