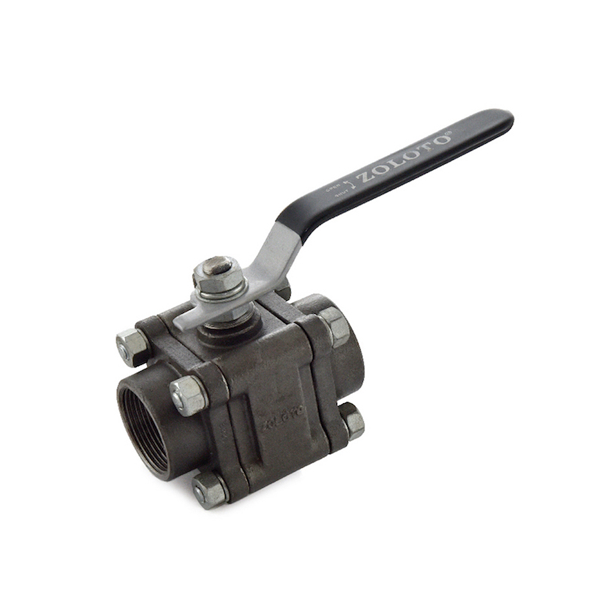

The Zoloto - 32 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve is an incredible tool for processes and applications demanding valves. This Class 150 Cast Steel Screwed Three Piece Design Ball Valve additionally allows elastomers to alter to accommodate various process conditions, flows, pressures, and temperatures. Three Piece Design Ball Valve offers another benefit users can easily remove this Ball Valve’s body without disturbing both end caps. This 32 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve from Zoloto undergoes various qualities, making it an ideal industrial device.
Product Specifications:
Manufactured by: Zoloto
Model: 1088
Material: Cast Iron
Size: 32 mm
Class: 150
Suitable for: Steam, Water and Oil
Test Pressure (Hydrostatic): Shell: 31 kg/cm²g (440psig)
Seat: 21kg/cm²g (300 psig)
Seat (Steam): 10.55 kg/cm²g (150 psig)
Maximum Working Temperature: 220°C
Key Features:
Disassembling this ball valve is easy.
Useful for extreme and high-cycle applications.
Well-tested before final approval.
