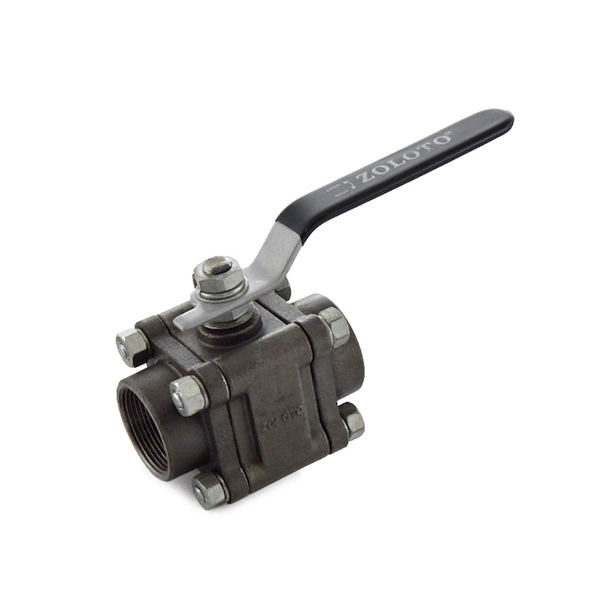

The Zoloto 25 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve swings open at both ends providing easy access to the valve's internals for maintenance and repair. Turning the handle causes a ball in the 25 mm Class 150 Cast Steel Screwed, Three Piece Design Ball Valve to revolve, aligning the cut-out channels in the Ball with the valve's inlets and outlets. The Class 150 Cast Steel Screwed, Three Piece Design Ball Valve allows the removal of the valve body for service or replacement. In addition, the Three Piece Design Ball Valve gets dimensionally accurate for reliability. The Screwed Three Piece Design Ball Valve has a reduced bore. The size of the Ball Valve is 25 mm. The material sourced for Three Piece Design Ball Valve comes from authentic vendors for premium quality assurance.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 220°C
Model: 1088
Material: Cast Steel
Test Pressure(Hydrostatic): Shell: 31 kg/cm²g (440psig)
Seat: 21kg/cm²g (300 psig)
Seat (Steam): 10.55 kg/cm²g (150 psig)
Size: 25 mm
Suitable for: Water/Steam/Oil
Type: Three-Piece Design Ball Valve
Key Features:
Protected Seat
Three Piece Design
Reduced Bore
Design Standard BS EN ISO 17292 (BS 5351)
Dimensionally Accurate.
Premium in Quality and Performance.
Suitable for water
Screwed BSP Female Ends
