Buy Zoloto 1088 - 20 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve Online

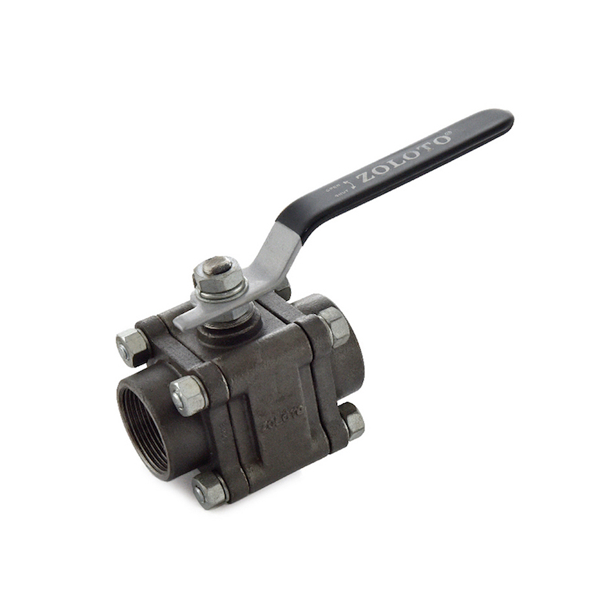

Zoloto 1088 - 20 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Zoloto 1088 - 20 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The 20 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve manufactured by Zoloto is suitable for steam, water and oil. Three Piece Design Ball Valve is ideal for these applications because they allow quick and easy parts replacement. In addition, the Screwed Three Piece Design Ball Valve is frequently the most cost-effective alternative in the long term because it has a detachable body for cleaning and maintenance. The Class 150 Cast Steel Screwed, Three Piece Design Ball Valve, is less expensive to replace the seats and seals than to replace the entire valve, plus not needing to remove the pipe couplings prevents a line closure if maintenance is required. Zoloto - 20 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve is appropriate for several high-pressure applications.
Product Specifications:
Company: Zoloto
Country of Origin: India
Material: Cast Steel
Model: 1088
Size: 20 mm
Body: 3 Piece design
Design: BS EN ISO
Suitable for: Steam, Water and Oil
Test Pressure (Hydrostatic): Shell: 31 kg/cm²g (440psig)
Seat: 21kg/cm²g (300 psig)
Seat (Steam): 10.55 kg/cm²g (150 psig)
Maximum Working Temperature: 220°C
Key Features:
Heat and Water Resistance
Three-piece design ball-shaped
High working temperature

Product Specifications

GENERAL

Brand:
Zoloto
Material:
Cast Steel
Model:
1088
Product:
Screwed Three Piece Design Ball Valve
Size:
20 mm
