Buy Zoloto 1088 - 15 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve Online

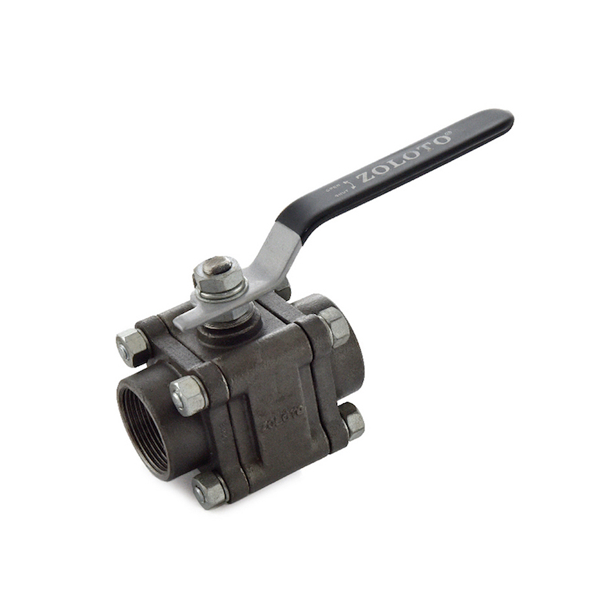

Zoloto 1088 - 15 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Zoloto 1088 - 15 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Zoloto 15 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve is a valve that swings open at both ends to allow simple access to the valve's internals for maintenance and repair. The 15 mm Class 150 Cast Steel Screwed Three Piece Design Ball Valve is long-lasting, cost-effective, and easy to repair. The Class 150 Cast Steel Screwed, Three Piece Design Ball Valve provides four key features: fully encapsulated end screws, weld-in-place end caps, in-line repair, and a protected seat. The Screwed Three Piece Design Ball Valve has a shell test pressure(hydrostatic) of 31 kg/cm²g (440psig). As a result, customers can weld the Ball Valve in place without removing the centre body, saving money on materials and labour. The Three Piece Design Ball Valve has Screwed Female Ends to BSPT / NPT / Socket Weld. The Ball Valve has a design standard of BS EN ISO 17292 (BS 5351). The size of the Ball Valve is 15 mm.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 220°C
Model: 1088
Material: Cast Steel
Test Pressure(Hydrostatic): Shell: 31 kg/cm²g (440psig)
Seat: 21kg/cm²g (300 psig)
Seat (Steam): 10.55 kg/cm²g (150 psig)
Size: 15 mm
Suitable for: Water/Steam/Oil
Type: Three-Piece Design Ball Valve
Key Features:
Quality Assured
Three Piece Design
Reduced Bore
Design Standard BS EN ISO 17292 (BS 5351)
Dimensionally Accurate.
Premium in Quality and Performance.
Precise double regulation
Suitable for water
Screwed BSP Female Ends

Product Specifications

GENERAL

Brand:
Zoloto
Material:
Cast Steel
Model:
1088
Product:
Screwed Three Piece Design Ball Valve
Size:
15 mm
