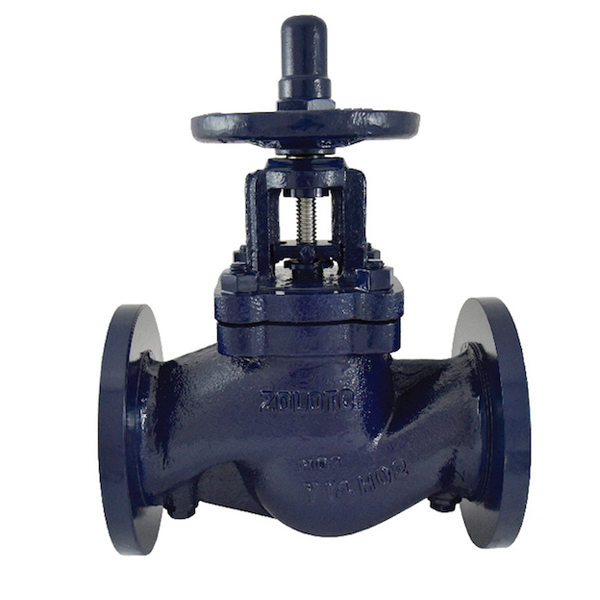

Zoloto - 300 mm Cast Iron Flanged Double Regulating Balancing Valve with Nozzle is a two-way regulating, control, and shut-off valve with a built-in pressure drop (inline flow) measurement facility. It is known as a balancing valve with a nozzle. Balancing problems are common in multi-user systems like Central Air Conditioning Plants and In-Process Heat Exchangers. The 300 mm Cast Iron Flanged Double Regulating Balancing Valve with Nozzle is a shut-off valve, a Flow Regulating Valve, a Flow Measuring Station, and a Drain Cockpit all rolled into one. The Cast Iron Flanged Double Regulating Balancing Valve with Nozzle is more than a valve; it is a complete system. A built-in Locking Device allows the Cast Iron Flanged Double Regulating Balancing Valve with Nozzle to pre-regulate flow.
Product Specifications:
Manufactured by: Zoloto
Country of Origin: India
Model: 1087 A
Material: Cast Iron
Size: 300 mm
Temperature: 110 degrees celsius
Maximum Operating Pressure (Hydrostatic): 16 Bar at an ambient temperature upto 45°C
Shell test pressure: shell 24 kg/cm2g (340 psig)
Suitable for: Water
Key Features:
Composed of cast iron and offers good resistance to water.
It is a sturdy and robust tool to control varying flow rates.
