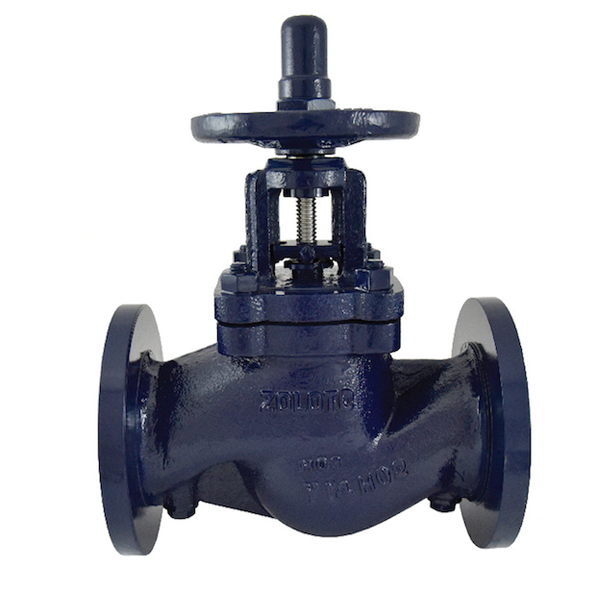

A balancing valve with a nozzle is a two-way regulating, control, and shut-off valve with a built-in pressure drop (inline flow) measurement facility. The Zoloto - 100 mm Cast Iron Flanged Double Regulating Balancing Valve with Nozzle functions as a shut-off and a Flow Regulating Valve, a Flow Measuring Station, and a Drain Cock (available in Bronze Valves only). 100 mm Cast Iron Flanged Double Regulating Balancing Valve with Nozzle is a system in and of itself, not just a valve. Cast Iron Flanged Double Regulating Balancing Valve with Nozzle is a built-in Locking Device that allows the valve to work in pre-regulated flow settings for tamper-resistant configuration. The Double Regulating Balancing Valve with Nozzle widely serves in HVAC systems and other process applications wherever there are balance issues.
Product Specifications:
Manufactured by: Zoloto
Country of Origin: India
Model: 1087 A
Material: Cast Iron
Size: 100 mm
Temperature:110 degrees celsius
Maximum Operating Pressure (Hydrostatic): 16 Bar at an ambient temperature upto 45°C
Shell test pressure: shell 24 kg/cm2g (340 psig)
Suitable for: Water
Key Features:
Precise double regulation.
Tamper-proof setting.
Handwheel operation
Low noise flow.
