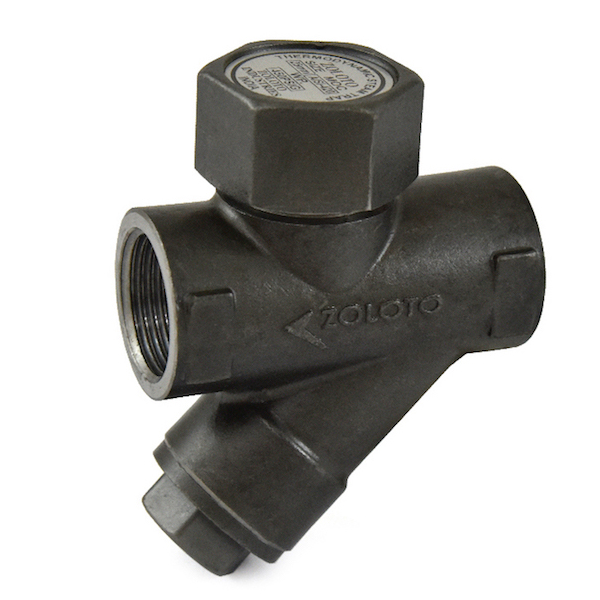

The Zoloto 25 mm Stainless Steel Screwed Thermodynamic Steam Trap is a powerful steam trap with a straightforward operation. The 25 mm Stainless Steel Screwed Thermodynamic Steam Trap operates, employing the dynamic effect of flash steam as it passes through the trap. The only moving part is the disc above the flat face inside the control chamber or cap. The Stainless Steel Screwed Thermodynamic Steam Trap has a unique operating principle that relies on water and flashes steam. As a result, the Thermodynamic Steam Trap is simple, robust, and reliable and can operate up to very high temperatures and pressures. The Steam Trap has stainless steel (SS 304) 0.5 mm hole diameter perforated sheet screen for trouble-free service. In addition, the Thermodynamic Steam Trap has Mirror finished moving disc. The 25 mm Stainless Steel Screwed Thermodynamic Steam Trap size is 25 mm.
Product Specifications:
Brand: Zoloto
Made In: India
Type: Screwed
Maximum Temperature: 425°C
Thread Type: BSP Female
Model: 1086
Media: Water
Suitable for: Steam
Body Material: Stainless Steel
Disc Holder: Bronze
Size: 25 mm
Maximum Working Pressure (Steam): 31 bar (450 psig)
End Connect: Female End
Type: Steam Trap
Key Features:
Screwed Female Ends to BSP.
Superior Quality Investment Casting
Mirror finished moving disc.
Carbon Steel Powder Coated
Refrigeration and HVAC applications
Heavy Duty Construction
Corrosion Free
Stainless Steel Screen
Brass Nuts
