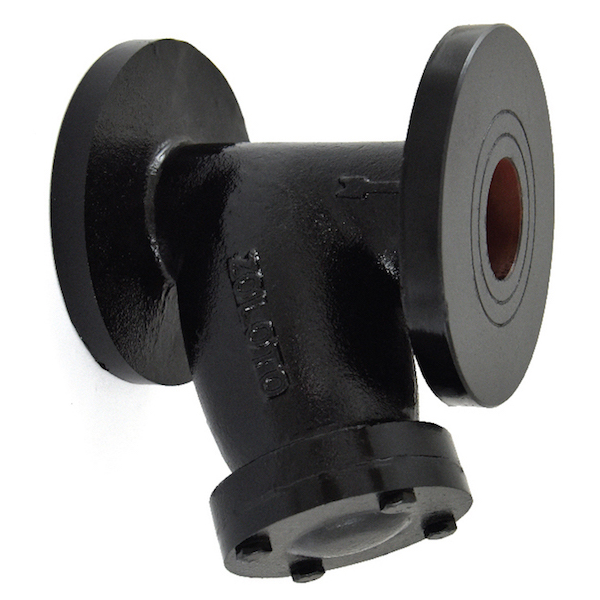

The Zoloto 65 mm Y Type, PN 1 Cast Iron Flanged Strainer gets used for removing unwanted materials from liquid, gas, or steam lines mechanically. The Pumps, metres, control valves, steam traps, regulators, and other process equipment in pipelines are all protected by the 65 mm Y Type, PN 1 Cast Iron Flanged Strainer. In many applications, the Flanged Strainer is a very cost-effective option. The Flanged Strainer gets equipped with a "blow-off" connection that allows the screen to clean without removing it from the strainer body for heavy dirt loading situations. The Flanged Strainer is an essential piece of equipment in the filter unit that is often mounted on the intake of the pressure reduction valve relief valve to ensure that all pipeline equipment operates properly. The size of the PN 1 Cast Iron Flanged Strainer is 65 mm. The maximum water temperature a Flanged Strainer can handle is 220°C.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 220°C
Material: Cast Iron
Model: 1084
Media: Water
Colour: Black
Maximum Working Pressure: 10 kg/cm²g (150 psig)
Size: 65 mm
Design Standard: IS 5312-1
Type: Flanged Strainer
Origin: India
Key Features:
Corrosion Free
Stainless Steel Screen
Screen With Meshes
Rubber Gasket
Cost-Effective
Convenient Installation
Carbon Steel Studs
