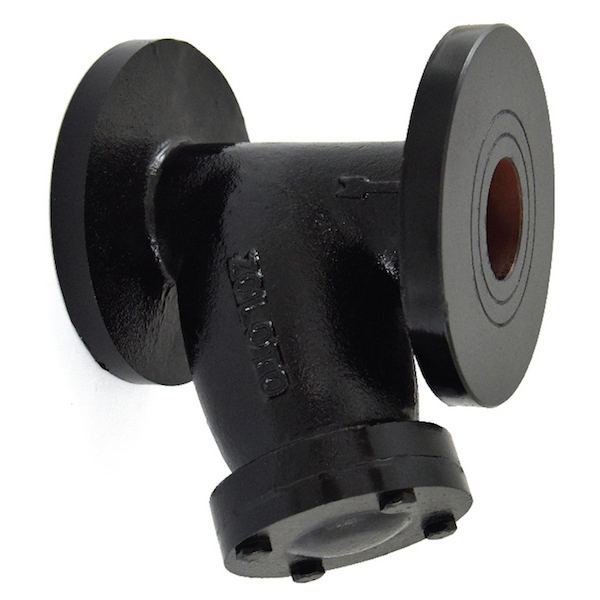

The Zoloto - 50 mm Y Type Flanged Strainer is one of the most commonly used Y Strainers. The PN 1 Cast Iron Flanged Strainer is particularly used to eliminate unwanted particles from gas, liquid, and steam. The PN 1 Cast Iron Flanged Strainer constitutes a straining component composed of a wire mesh. This wire mesh is essentially responsible for separating or eliminating undesired particles from gas, liquid, and steam. The Flanged Strainer manufactured by Zoloto offers easy installation. The PN 1 Cast Iron Flanged Strainer can be installed in horizontal and vertical positions based on user requirements and preferences. This PN 1 Cast Iron Flanged Strainer can be customised effortlessly to meet the requirements appropriately.
Product Specifications:
Manufactured by: Zoloto
Model: 1084
Material: Cast Iron
Type: Y
Size: 50 mm
Test Pressure (Hydrostatic) of Shell: 15 kg/cm²g (220 psig)
Maximum Working Pressure: 10 kg/cm²g (150 psig)
Maximum Working Temperature: 220°C
Suitable for: Water
Key Features:
Flexible and versatile.
Composed of strong cast iron material.
It can be installed in any given position.
