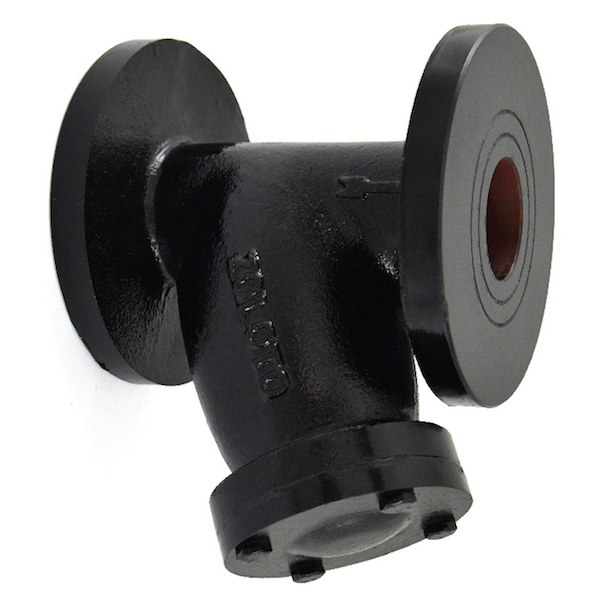

The Zoloto 40 mm Y Type, PN 1 Cast Iron Flanged Strainer is a device that uses a perforated or wire mesh straining element to remove undesirable materials from liquid, gas mechanically, or steam lines. The 40 mm Y Type, PN 1 Cast Iron Flanged Strainer protects pumps, meters, control valves, steam traps, regulators, and other process equipment in pipelines. The PN 1 Cast Iron Flanged Strainer screen is directed in the body and covered by stainless steel (SS 304) perforated sheet screen (3 mm perforation). The extensive screening area of the Cast Iron Flanged Strainer improves its performance. The Flanged Strainer gets typically utilised in high pressure main steaming pipelines or high-pressure bypass water feeding pipelines, among other places. The size of the PN 1 Cast Iron Flanged Strainer is 40 mm. Therefore, the maxim water pressure the Flanged Strainer takes is 10 kg/cm²g (150 psig).
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 220°C
Material: Cast Iron
Model: 1084
Media: Water
Colour: Black
Maximum Working Pressure: 10 kg/cm²g (150 psig)
Size: 40 mm
Design Standard: IS 5312-1
Type: Flanged Strainer
Origin: India
Key Features:
Corrosion Free
Stainless Steel Screen
Screen With Meshes
Rubber Gasket
Convenient Installation
Carbon Steel Studs
