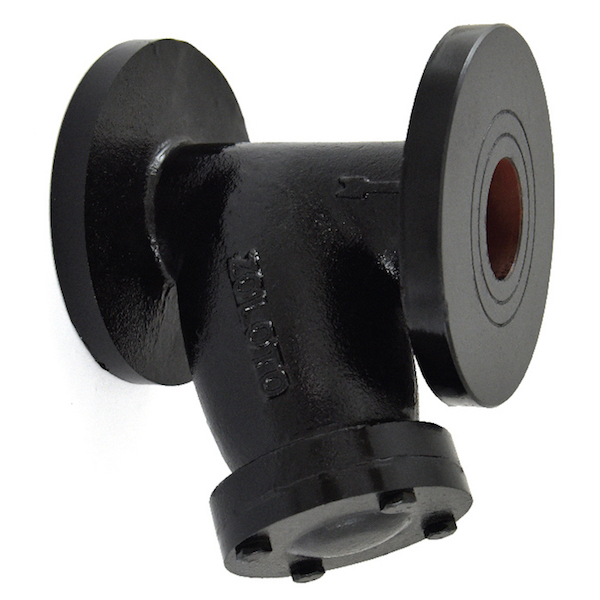

The Zoloto 200 mm Y Type, PN 1 Cast Iron Flanged Strainer is utilised in a wide range of liquid straining applications to safeguard downstream process system components in several sectors such as chemical processing, petroleum, power generation, and marine. Water handling applications, in which the 200 mm Y Type, PN 1 Cast Iron Flanged Strainer protects equipment from being damaged or blocked by undesirable sand, gravel, or other waste, are pretty frequent. For heavy dirt loading situations, the Flanged Strainer comes with a "blow-off" connection that allows the screen gets cleaned without removing it from the strainer body. The Flanged Strainer comes in a black finish. In addition, the PN 1 Cast Iron Flanged Strainer has a stainless steel screen.
Product Specifications:
Brand: Zoloto
Made In: India
Maximum Temperature: 220°C
Material: Cast Iron (main body)
Model: 1084
Media: Water
Colour: Black
Maximum Working Pressure: 10 kg/cm²g (150 psig)
Size: 200 mm
Design Standard: IS 5312-1
Type: Flanged Strainer
Origin: India
Key Features:
Corrosion Free
Stainless Steel Screen
Screen With Meshes
Rubber Gasket
Cost-Effective
Convenient Installation
Carbon Steel Studs
