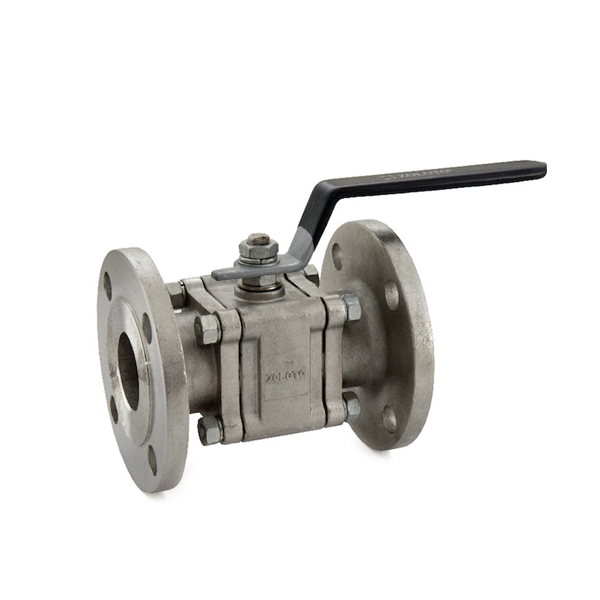

Zoloto - 50 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve length of 178 mm. The product uses stainless steel for its entire body and some other components of Polytetrafluoroethylene and high tensile steel. As a result, the 50 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve it’s capable of withstanding high temperatures and pressures without any mechanical failure. The materials also provide corrosion resistance to the Class 150 Stainless Steel Three Piece Design Flanged Ball Valve minimising any chances of damage due to passage of water or any other common corrosives. In addition, the Three-Piece Design Flanged Ball Valve design provides flexibility to the user as any damaged part in the Flanged Ball Valve is easily replaceable. As a result, the Ball Valve is a reliable and preferred product.
Product Specifications:
Size: 50mm
Country of Origin: India
Material: Stainless Steel
Manufactured by: Zoloto
Type: Class 150 Three Piece Design Flanged Ball Valve
Product Code: 1081A
Valve Length: 178mm
Shell: 31 kg/cm²g (440 psig)
Maximum Working Pressure: 21 kg/cm²g (300 psig)
Seat (Pneumatic): 7 kg/cm²g (100 psig)
Maximum Working Temperature: 220°C
Key Features:
The product is easy to operate and install.
The materials reduce damage due to vortex formation in the flowing fluids.
