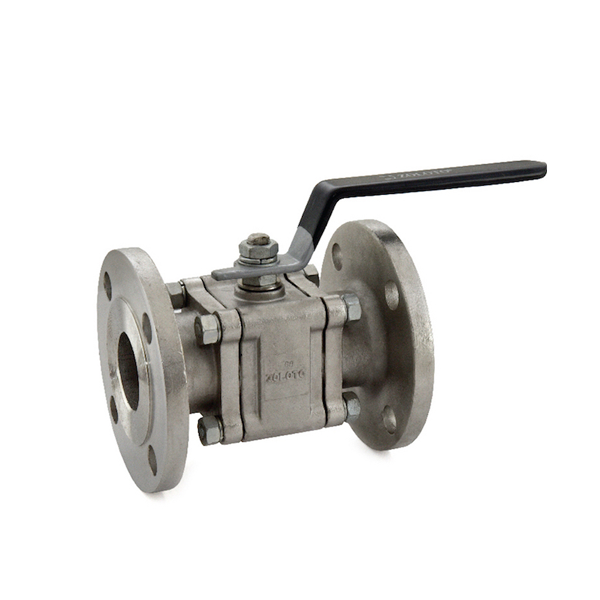

Zoloto - 40 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve is a mid-sized ball valve that enables the user to connect and disconnect two connection lines of fluids. The polytetrafluoroethylene gaskets of the 40 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve make it extremely watertight and secure. The product can withstand high working pressure with the stainless steel body of the Class 150 Stainless Steel Three Piece Design Flanged Ball Valve and the high tensile steel nuts. The easy replaceability of the parts in the Three Piece Design Flanged Ball Valve increases its service life. It also makes the Flanged Ball Valve have low operating costs in the long run. The Ball Valve finds its use in the connections carrying various fluids.
Product Specifications:
Size: 40mm
Country of Origin: India
Material: Stainless Steel
Manufactured by: Zoloto
Type: Class 150 Three Piece Design Flanged Ball Valve
Product Code: 1081A
Valve Length: 165mm
Shell: 31 kg/cm²g (440 psig)
Maximum Working Pressure: 21 kg/cm²g (300 psig)
Seat (Pneumatic): 7 kg/cm²g (100 psig)
Maximum Working Temperature: 220°C
Key Features:
The product requires low maintenance.
The product has corrosion resistance properties.
