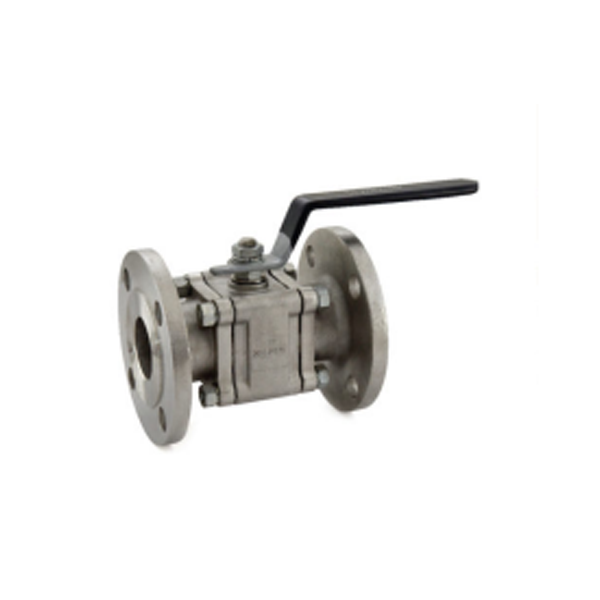

Zoloto - 50 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve is different in design from one piece and two-piece ball valves. These 50 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valves can easily withstand high pressure find temperature due to their brilliant design. The Class 150 Stainless Steel Three Piece Design Flanged Ball Valve’s best feature is its ability to break into three separate pieces. This way, the Three-Piece Design Flanged Ball Valve offers a long service life as The user can easily replace any damaged part. In addition, the Flanged Ball Valve has a fluid-tight design which makes this Ball Valve an ideal choice for the transportation of gases and liquids.
Product Specifications:
Size: 50mm
Country of Origin: India
Material: Stainless Steel
Manufactured by: Zoloto
Type: Class 150 Three Piece Design Flanged Ball Valve
Product Code: 1080B
Valve Length: 178mm
Shell : 31 kg/cm²g (440 psig)
Maximum Working Pressure: 21 kg/cm²g (300 psig)
Seat (Pneumatic): 7 kg/cm²g (100 psig)
Maximum Working Temperature: 220°C
Key Features:
The product uses an assortment of materials which gives it versatility.
The product is a result of modern engineering, which improves the life and efficiency of the entire setup.
