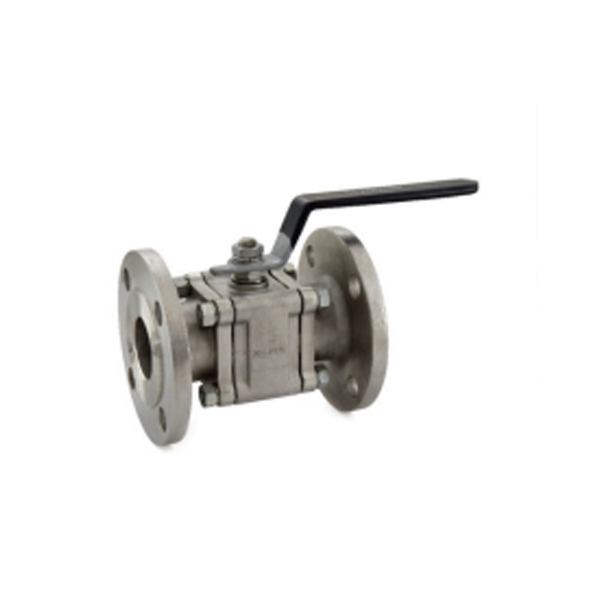

Zoloto - 25 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve can withstand high temperature and pressure, making it ideal for an industrial setting. The 25 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve uses a combination of stainless steel, Polytetrafluoroethylene, and high tensile steel in its components. As a result, the Class 150 Stainless Steel Three Piece Design Flanged Ball Valve proves economical compared to the one-piece or two-piece design. Furthermore, unlike the one-piece design, the Three-Piece Design Flanged Ball Valve can easily be divided into three different parts, making the Flanged Ball Valve more reliable and affordable in the long run. In addition, it allows the user to replace the defective part of the Ball Valve without replacing the valve.
Product Specifications:
Size: 25mm
Country of Origin: India
Material: Stainless Steel
Manufactured by: Zoloto
Type: Class 150 Three Piece Design Flanged Ball Valve
Product Code: 1080B
Valve Length: 127mm
Shell : 31 kg/cm²g (440 psig)
Maximum Working Pressure: 21 kg/cm²g (300 psig)
Seat (Pneumatic): 7 kg/cm²g (100 psig)
Maximum Working Temperature: 220°C
Key Features:
The nuts news high tensile steel making them robust.
The product offers long life.
