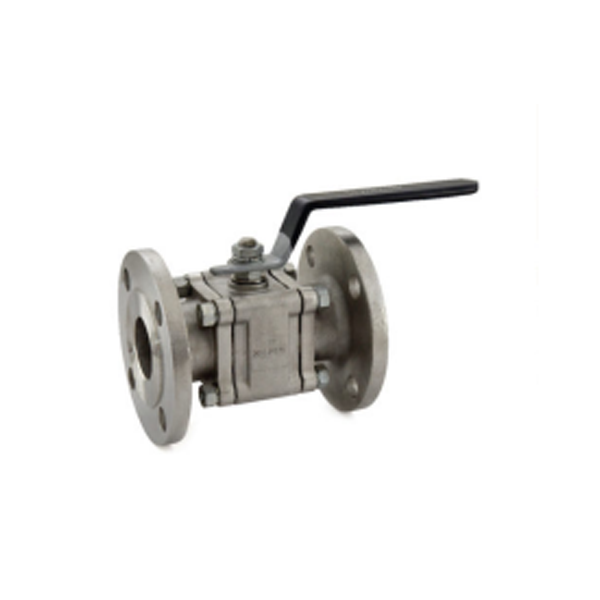

Zoloto - 20 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve have easily replaceable parts. The possibility to change seals and seats in the 20 mm Class 150 Stainless Steel Three Piece Design Flanged Ball Valve make it an ideal choice. On encountering any damage, only the damaged segment of the Class 150 Stainless Steel Three Piece Design Flanged Ball Valve needs replacement which prevents a complete shutdown. The Three-Piece Design Flanged Ball Valve uses stainless steel, PTFE, and high tension steel in various components. The PTFE in the Flanged Ball Valve provides a tight fluid seal making the Ball Valve ideal for both liquids and gases.
Product Specifications:
Size: 20mm
Country of Origin: India
Material: Stainless Steel
Manufactured by: Zoloto
Type: Class 150 Three Piece Design Flanged Ball Valve
Product Code: 1080B
Valve Length: 117mm
Shell : 31 kg/cm²g (440 psig)
Maximum Working Pressure: 21 kg/cm²g (300 psig)
Seat (Pneumatic): 7 kg/cm²g (100 psig)
Maximum Working Temperature: 220°C
Key Features:
The product is affordable in the long run.
The combination of materials in the three-piece valve provides it versatility.
