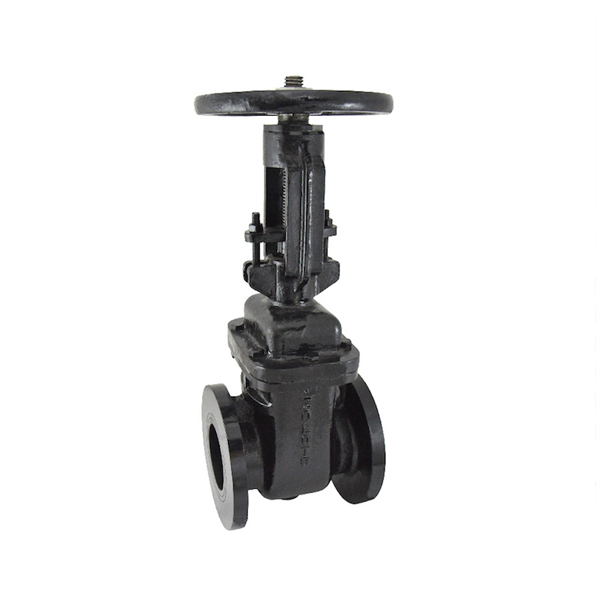

Zoloto - 65 mm Cast Iron Flanged Sluice Valve PN 1 with Rising Stem is an excellent quality cast iron sluice valve available in the market. The design of this 65 mm Cast Iron Flanged Sluice Valve PN 1 with Rising Stem is as per IS 14846 reference standard. It features a stainless steel rising spindle and a durable cast iron body. The Flanges of this Cast Iron Flanged Sluice Valve PN 1 with Rising Stem conforms to IS 1538 standards. Its administration involves operation via a handwheel. This Flanged Sluice Valve PN 1 with Rising Stem is a yoke type gate valve that features a bolted bonnet and a solid wedge. Also, this Sluice Valve comes with a provision of Repacking under pressure.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Product: Flanged Sluice Valve PN 1 with Rising Stem
Model: 1079C
Body Material: Cast Iron
Stem: Stainless Steel
Size: 65 mm
End Connection Type: Flange
Test Pressure (Hydrostatic): Shell - 1.5 MPa; Seat - 1.0 MPa
Max Working Temperature: 45°C
Key Features:
Pneumatic control
Rising Stem functioning
Sturdy body
