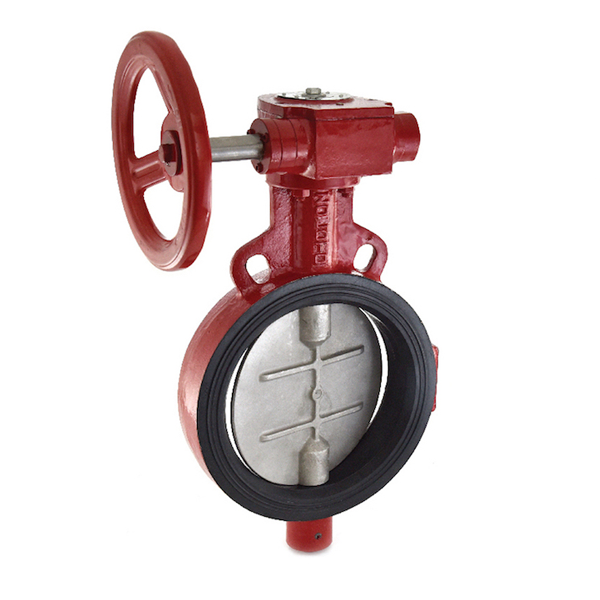

The Zoloto - 250 mm Wafer Type, Butterfly Valve with S S 304 Disc is a gear-operated valve used in pharmaceutical, chemical, and food industries. The 250 mm Wafer Type Butterfly Valve with S S 304 Disc is designed according to IS 13095/ BS EN 593 (BS 5155) standard. The Wafer Type, Butterfly Valve with S S 304 Disc has a maximum working temperature of 90’C. The Butterfly Valve with S S 304 Disc is equipped with a rubber lining which acts as a primary seal to the stem and gasket joint. The entire Butterfly Valve consists of Stainless Steel, Aluminium, PTFE, Nitrile Rubber, and Iron. The Zoloto - 250 mm Wafer Type, Butterfly Valve with S S 304 Disc is ideal for handling large volume applications.
Product Specifications:
Brand: Zoloto
Product: Butterfly Valve
Type: Wafer Type
Material: S.G Iron
Maximum Working Pressure: 2.5 MPa
Maximum Working Temperature: 90°C
Size: 250 mm
Size: 10 inches
Key Features:
High-temperature resistance
Suitable for high-pressure applications
Lightweight
