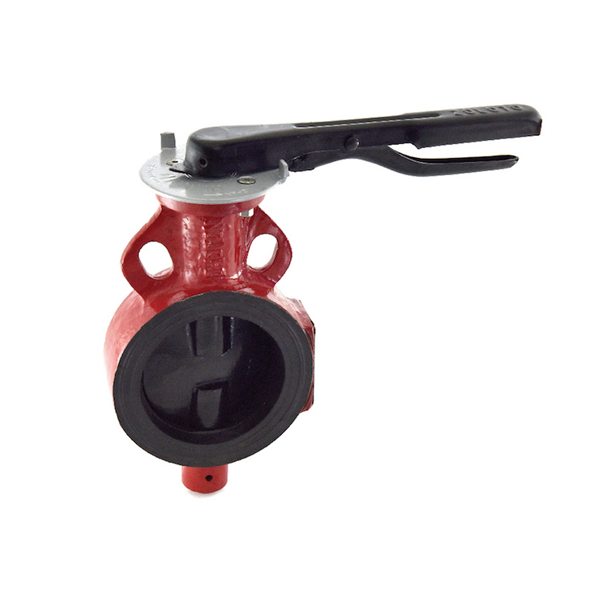

The Zoloto - 150 mm Wafer Type, Butterfly Valve with S.G Iron Disc is a gear operated Butterfly Valve with Iron Disc. The 150 mm Wafer Type Butterfly Valve with S.G Iron Disc comes with premium quality S.G iron construction. This type of Wafer Type, Butterfly Valve with S.G Iron Disc, is suited for handling slurries or liquids with large amounts of suspended solids. The Butterfly Valve with S.G Iron Disc has an integrally moulded rubber line. The two-piece design of this Butterfly Valve is precisely guided between the PTFE / Bronze bushes.
Product Specifications:
Brand: Zoloto
Made in: India
Product Code: 1078G
Size: 150mm
Design standard: IS 13095 / BS EN 593 (BS 5155)
Test pressure: Shell: 1.5 MPa
Seat: 1.1 MPa
Operating pressure: 1.0MPa
Operating temperature: 90°C
Key Features:
Gear operated
S.G Iron disc, which is accurately guided between the two stems
Suitable for water
