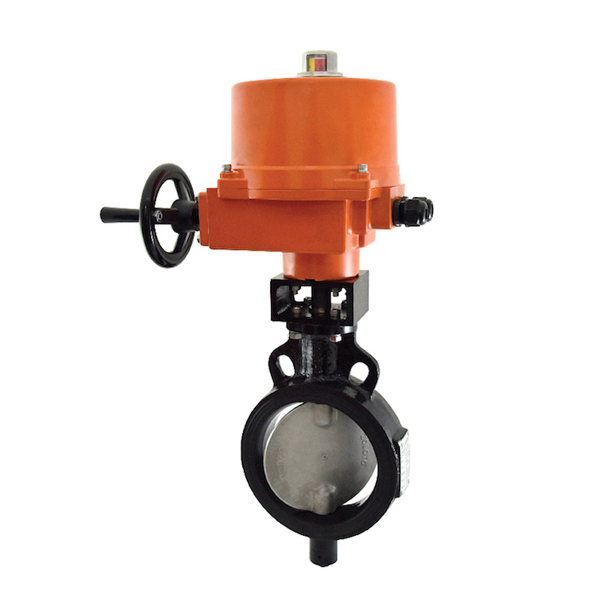

The Zoloto - 65 mm Wafer Type, Butterfly Valve with Electrical Actuator is an electrical actuator operated Butterfly Valve. This 65 mm Wafer Type Butterfly Valve with Electrical Actuator is compliant with BMS (Building Management System). Extended wire can be provided to this Wafer Type, Butterfly Valve with Electrical Actuator for ease of installation. In the outdoor application of this Butterfly Valve with an Electrical Actuator, IP 67 protection is available. It is compatible to sandwich between flanges as per BS 10 Table D, E, F, H, DIN, PN 10, PN. 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
Product Specifications:
Brand: Zoloto
Made in: India
Product Code: 1078F
Size: 65 mm
Design standard: IS 13095 / BS EN 593 (BS 5155)
Test pressure: Shell: 1.5 MPa
Seat: 1.1 MPa
Operating temperature: 90°C
Operating pressure: 1.0 MPa
Input voltage: 24/230 V power supply
Key Features:
Electrical actuator operate
Inbuilt micro switch position feedback
S.G iron construction
Suitable for water
