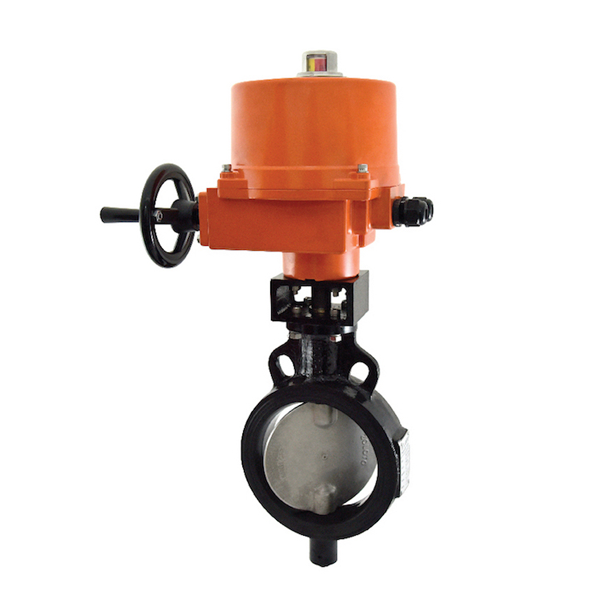

The Zoloto- 40 mm Wafer Type, Butterfly Valve with Electrical Actuator is compliant with the Building Management System. The 40 mm Wafer Type, Butterfly Valve’s actuator can be provided with extended wire for simplifying the process of installation. It is IP 67 protection available for outdoor applications. The various components of the Butterfly Valve with Electrical Actuator are constructed using different materials like carbon steel, S.G. Iron, spring steel, aluminium, nitrile rubber, and PTFE/Bronze. The body of the wafer type butterfly valve is made of S.G. iron. PTFE or Bronze is used to make packing bush and lower stem. The body lining is made of Nitrile. A valve with IP 54 actuator can be made available for indoor application.
Product Specifications:
Brand: ZOLOTO
Model: 1078 F
Made in: India
Size: 40 mm
Size: 1.5 inch
Material: Carbon Steel
Key Features:
Test Pressure for Shell 1.5 MPa
It is operated through an electric actuator with a position indicator and adjustable centre stopper for both open and closed positions.
Maximum Working Pressure is 1.0 MPa
The Butterfly Valve is most suitable for water.
Input voltage- 24/230 V power supply
