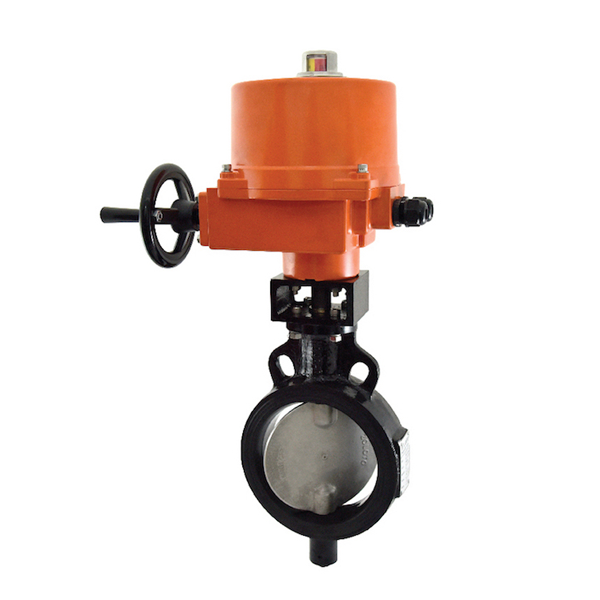

The Zoloto 250 mm Wafer Type Butterfly Valve with Electrical Actuator is a device used for the process of regulation of the mediums or liquids by stopping and allowing the flow of the mediums. The Butterfly Valve is the valve that is also known for the quick open type. The Wafer Type Butterfly Valve with Electrical Actuator comes with an electrical actuator that is an appliance used to generate movement of a load that needs force. The Wafer Type, Butterfly, comes with four holes aligned with two flanges in the pipework.
Product Specifications:
Brand name: Zoloto
Developed in: India
Product: Wafer Type, Butterfly Valve with Electrical
Size of the product: 250mm
Material: S G Iron
Maximum Working Temperature: 90°C
Model: 1078F
Working Pressure: 1.0 MPa
Key Features:
Stainless Steel
Operated by Electrical Actuator
Wafer type
S G Iron designed
The actuator is with a position indicator
Comes with an extra wire
IP 67 protection
Inbuilt micro switch
Two-Piece Stem
Moulded rubber lining
Sturdy structure
