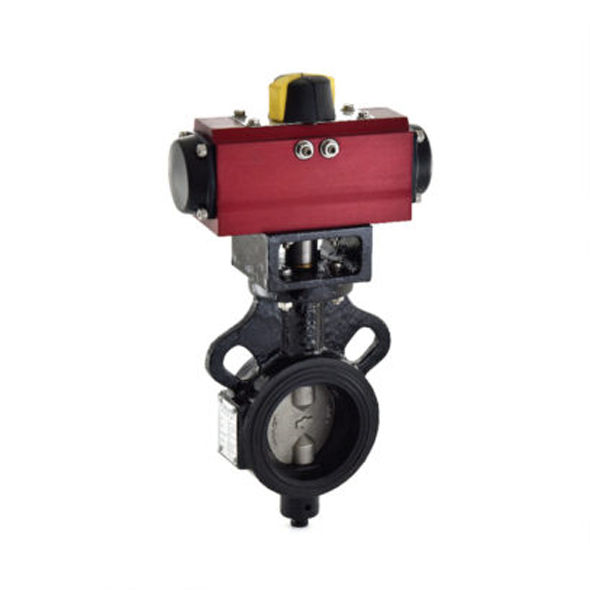

The Zoloto - 50 mm Wafer Type Butterfly Valve with Pneumatic Actuator is a top-notch product. The materials used in the production of the Butterfly Valve with Pneumatic Actuator are derived from the most dependable and official partners. Scotch Yoke Technology is used to design these tools. The disc is made of stainless steel (CF8 / CF8M*) that is precisely guided between the two stems. The actuator has a position indicator and an adjustable centre stopper for open and closed positions. The actuator is designed without a rack and pinion for smoother operation and longer life.
Product Specifications:
Brand Name: Zoloto
Product Type: Butterfly Valve with Pneumatic Actuator
End Connection: Wafer Type
Body Material: S.G. Iron
Disc: S.S-304 Disc
Working Test Pressure: Test Pressure PN-10
Body Test Pressure: Test Pressure PN-10
Size: 50 mm
Product Code: 1078 D
Key Features:
Wafer Type
Design Standard IS 13095 / BS EN 593 (BS 5155).
S.G. Iron construction.
Double Acting Pneumatic Actuator Induced.
