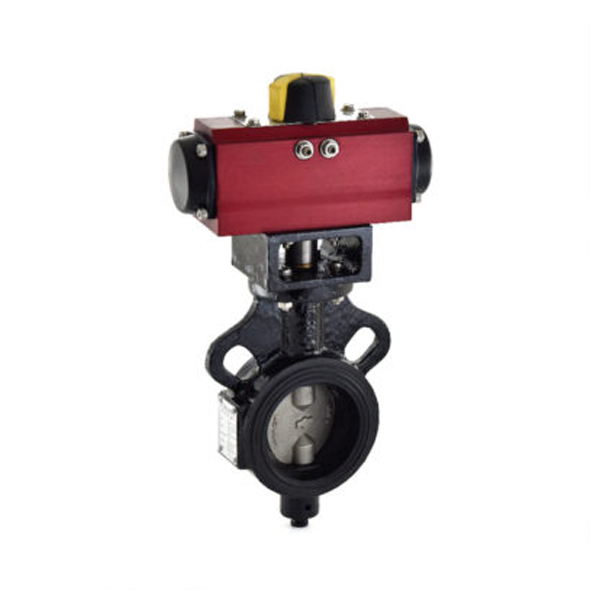

Zoloto 100 mm Wafer Type, Butterfly Valve with Pneumatic Actuator has an accurate base made using carbon steel. Additionally, the company uses SG iron to make the body of this Wafer Type of Butterfly Valve with a Pneumatic Actuator. This 100 mm Wafer Type Butterfly Valve with Pneumatic Actuator can be easily sandwiched between flanges. In addition, this Wafer Type Butterfly Valve with Pneumatic Actuator comes without rock and pinion, making it last longer and perform smoother operations. This Butterfly Valve with Pneumatic Actuator has the model number 1078D. This wafer type butterfly valve has the design standard of IS 13095/BS EN 593. This butterfly valve has an accurate model number of PD 70.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Model Number: 1078D
Accurate Model Number: PD 70
Design Standard: IS 13095/BS EN 593
Type: Wafer
Design: PN 1.0
Shell Pressure: 1.5 Mpa
Disc: Stainless Steel
Design: Two-Piece Step Design
A ±1.5: 52
B ~: 99
C: 110
D: 306
E: 25
Suitable for: Water
Test Pressure: Hydrostatic
Seat Pressure: 1.1 Mpa
Maximum Temperature: 90 degrees C
Maximum Working Pressure; 1.0 Mpa
Size: 100 mm
Size: 4 inches
Colour: Black and Red
Material: SG Iron
Key Features:
This tool has a two-piece stem design.
Anti-corrosive and anti-rust body.
