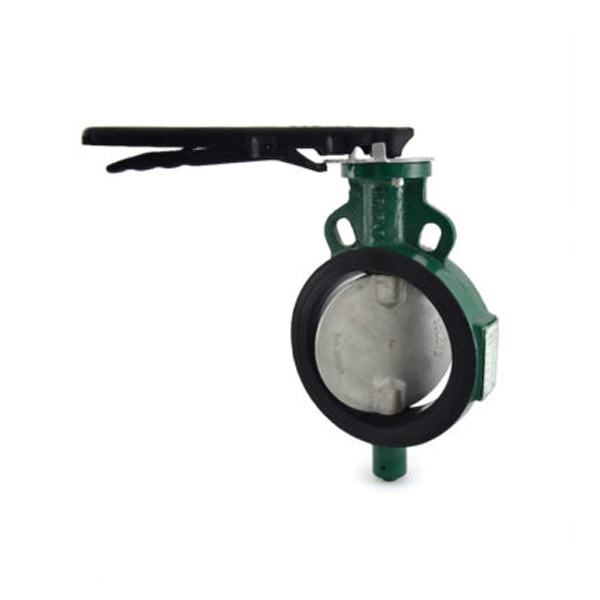

The Zoloto 150 mm Wafer Type Butterfly Valve is a Wafer Type Butterfly Valve. It is a lever-operated valve. With the SG iron construction, this 150 mm Wafer Type Butterfly Valve comes with a stainless steel disc that is accurately guided between the two stems. This valve is compatible to sandwich between flanges as per BS 10 Table D, E, F, H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538. Butterfly Valves are suitable for large flows of liquid at relatively low pressures.
Product Specifications:
Brand: Zoloto
Made in: India
Product code: 1078B
Size: 150 mm
Design standard: IS 13095 / BS EN 593 (BS 5155)
End connection: Wafer type
Test pressure: Shell: 2.4 MPa
Seat: 1.76 MPa
Operating temperature: 90°C
Operating Pressure: 1.6 MPa
Key Features:
Wafer Type
Two-Piece Stem design which is precisely guided between the PTFE / Bronze bushes.
Suitable for water
