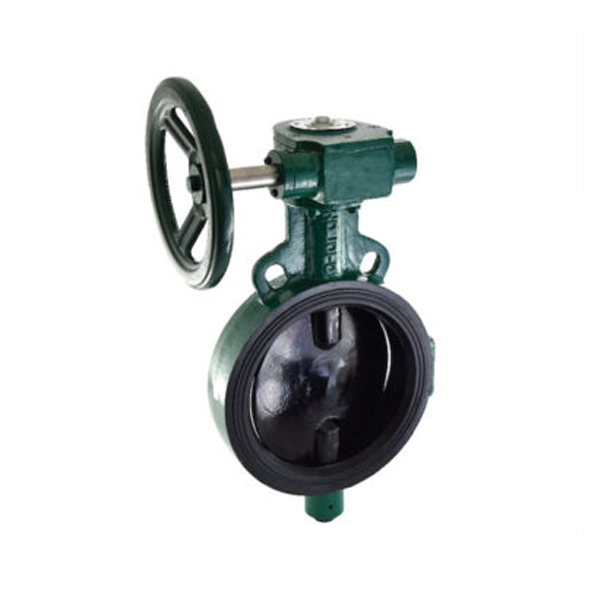

Zoloto - 450 mm Wafer Type, Butterfly Valve with SG Iron Disc Gear Operated has an SG iron duct carefully placed between two stems. This 450 mm Wafer Type Butterfly Valve with SG Iron Disc Gear Operated has a rubber lining that is internally moulded and provides seating to the valve disc. The company manufactures this tool in India. This Wafer Type Butterfly Valve with SG Iron Disc Gear Operated has the model number- 1078 A. This Butterfly Valve with SG Iron Disc Gear Operated has the design standard of IS 13095/BS EN 593.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Model Number: 1078A
Design Standard: IS 13095/BS EN 593
Type: Wafer
Operation: Gear
Design: Two-Piece design
Shell Pressure: 1.5 Mpa
A ±1.5: 108
B ~: 440
C: 330
D: 466
Product Type: Butterfly Valve with SG Iron Disc Gear Operated
Suitable for: Water
Test Pressure: Hydrostatic
Seat Pressure: 1.1 Mpa
Maximum Temperature: 90 degrees C
Maximum Working Pressure; 1.6 Mpa
Size: 450 mm
Size: 18 inches
Colour: Black and Green
Material: SG Iron
Key Features:
This tool has a two-piece stem design.
Anti-corrosive built.
