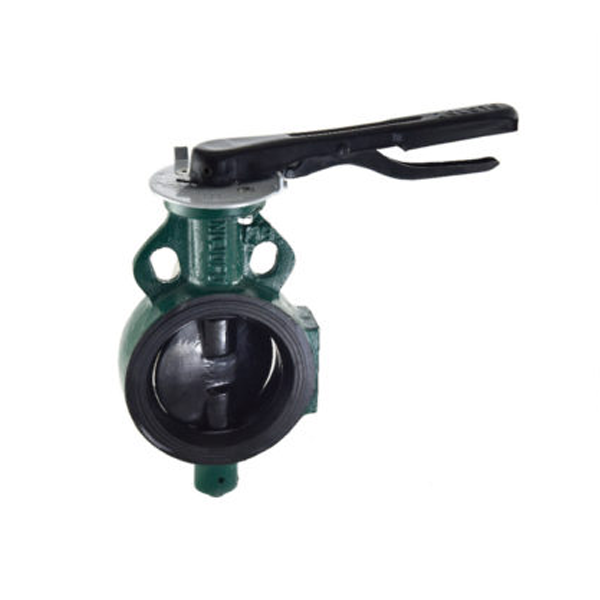

The Zoloto- 80 mm Wafer Type, Butterfly Valve with SG Iron Disc is made of a stainless steel body and a chrome-plated steel stem which is accurately guided between the two PTFE Bronze bushes. The working parts of the Wafer Type, Butterfly Valve are constructed using various materials like carbon steel, S.G. Iron, spring steel, stainless steel, aluminium, nitrile rubber, and PTFE. The locking washer and dowel pin are made of spring steel, and the flow control lever, notch plate, and screw and nuts are constructed using carbon steel. The body lining of the Wafer Type is made of Nitrile, and the identification place of the Butterfly Valve uses aluminium. The O ring is made of Nitrile Rubber.
Product Specifications:
Brand: ZOLOTO
Model: 1078
Made in: India
Size: 80 mm
Size: 3 inch
Material: S.G. Iron
Key Features:
It can work at a maximum temperature of 90°C
Test Pressure for Shell 2.4 MPa
The 80 mm Wafer Type Butterfly Valve with SG Iron Disc is most suitable for water.
The maximum working pressure is 1.6 MPa
