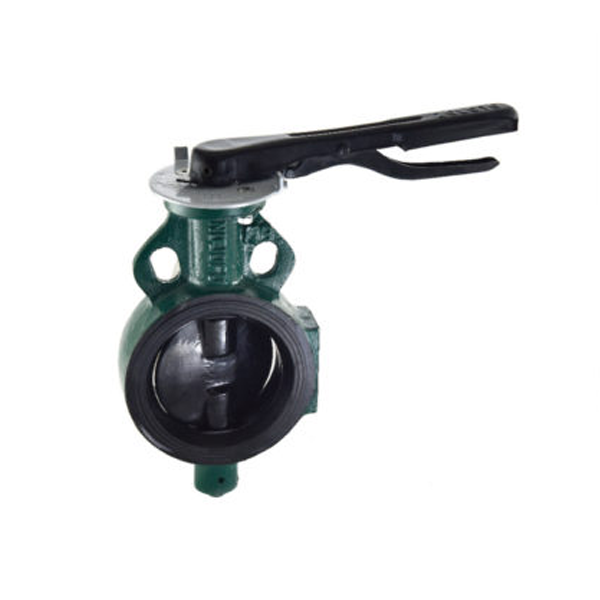

Zoloto - 65 mm Wafer Type, Butterfly Valve with S.G. Iron Disc is a butterfly valve designed for use in the chemical industry, pharmaceutical industry, food, and beverage industry, power plants, paper mills, and other industrial applications. Wafer Type, Butterfly Valve with S.G. Iron Disc used to control flow rates from 0.3 to 4.0 m3/min. The Butterfly Valve is designed to withstand the high pressures of the oil and gas industry while remaining easy to install and effective at controlling flow. A wide range of applications makes a 65 mm Wafer Type Butterfly Valve with S.G. Iron Disc is a versatile product.
Product Specifications:
Brand: Zoloto
Material: Bronze
Model No.: 1078
Size: 65 mm
Temperature: 90°C
Media: Water
Maximum Working Pressure: 1.6 MPa
Seat: 1.76 MPa
Shell: 2.4 MPa
Key Features:
Structure Standard: IS 13095 / BS EN 593 (BS 5155)
Lever Operated
S.G. Iron Construction
Integrally moulded rubber lining
Wafer Type
Gasket joint with pipe flanges
S.G. Iron disc
