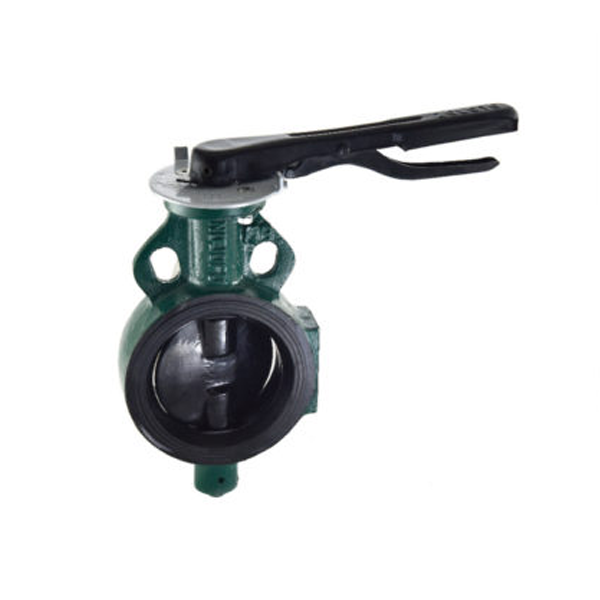

The Zoloto - 125 mm Wafer Type, Butterfly Valve with S.G Iron Disc is lever operated Butterfly Valve. The S.G iron disc is accurately guided between the two stems of the 125 mm Wafer Type, Butterfly Valve with S.G Iron Disc. This Butterfly Valve with S.G Iron Disc comes with a two-piece stem design guided between the PTFE / Bronze bushes. Butterfly Valves come with many advantages over other types of valves. The Wafer Type, Butterfly Valve with S.G Iron Disc comes with an integrally moulded rubber lining, which provides seating to the valve disc as a primary seal to the stem and gasket joint with matching pipe flanges.
Product Specifications:
Brand: Zoloto
Made in: India
Product Code: 1078
Size: 125 mm
Design standard: IS 13095 / BS EN 593 (BS 5155)
Test pressure: Shell: 2.4 MPa
Seat: 1.76 MPa
Operating temperature: 90°C
Operating Pressure: 1.6 MPa
Key Features:
Wafer type valve
Suitable for water
