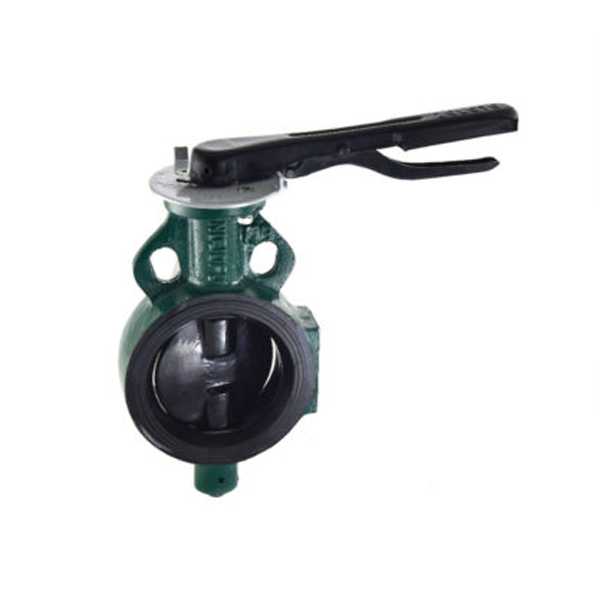

Zoloto - 100 mm Wafer Type, Butterfly Valve with SG Iron Disc Zoloto valves are manufactured from the best materials and designed in conformity to international standards. The 100 mm Wafer Type Butterfly Valve meets the requirements of accuracy, durability, and reliability. Zoloto Wafer Type Butterfly Valve is available for all industrial purposes such as water supply, sewage treatment plants, gas distribution networks, etc. This Butterfly Valve has integrally moulded rubber lining as per requirement, which provides seating to the valve disc as a primary seal to the stem and gasket joint with matching pipe flanges.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Material: SG iron
Product: butterfly valve with SG iron disc
Size: 100 mm
Type: Wafer
Test pressure: Shell: 425 psig, Seat:150 psig
Product code: 1078
Temperature: 90 deg c
Flow Control Lever: Carbon Steel
Notch Plate: Carbon Steel
Packing Bush: PTFE / Bronze
Upper Stem: Stainless Steel
Body: S.G Iron
Disc: S.G Iron
Name Plate: Aluminium
Bush: PTFE / Bronze
Lower Stem: Stainless Steel
Key Features:
The butterfly valve has an SG iron disc which is corrosion resistant.
The butterfly valve has a PTFE packing which ensures a tight seal.
