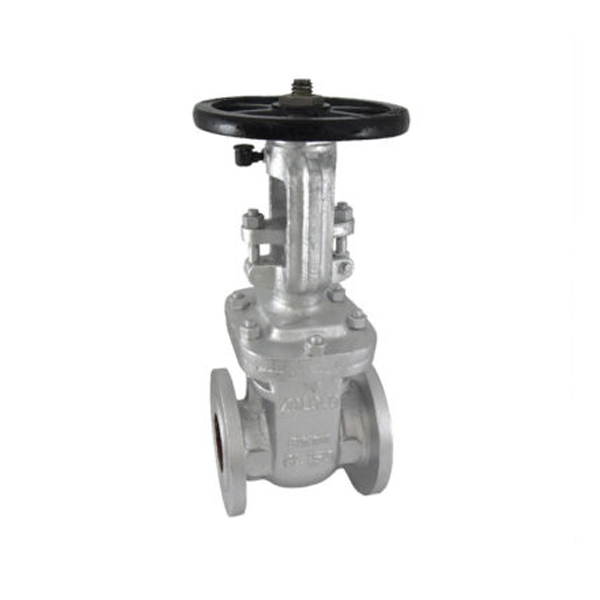

Zoloto 1077 - 65 mm Class 150 Cast Steel Flanged Gate Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Zoloto 1077 - 65 mm Class 150 Cast Steel Flanged Gate Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Zoloto - 65 mm Class 150 Cast Steel Flanged Gate Valve is a handwheel operated Class 150 Cast Steel Flanged Gate Valve. This 65 mm Class 150 Cast Steel Flanged Gate Valve is a heavy-duty Flanged Gate Valve. This Cast Steel Flanged Gate Valve is useful where a reduction in minimum stress is essential. This Gate Valve comes with a bolted bonnet, outside screw. It is a yoke type valve with a rising stem. It is used in various industrial applications, boiler facilities and rough surroundings. The cast steel used provides effective stream separation on either side of the valve.

Product Specifications:

Brand: Zoloto
Made in: India
Product code: 1077
Size: 65 mm
Design standard: BS EN ISO 10434 / API 600
Test pressure: Shell : 31 kg/cm²g (425 psig)
Seat : 21kg/cm²g (313 psig)
Seat (Steam) : 10.55 kg/cm²g (150 psig)
Operating temperature: 425°C

Key Features:

Flanged Ends as per ASME B 16.5 Class-150
Provides minimum leakage and full-service life
Suitable for steam, water, oil

Product Specifications

GENERAL

Brand:
Zoloto
Material:
Cast Steel
Model:
1077
Product:
Flanged Gate Valve
Size:
65 mm
