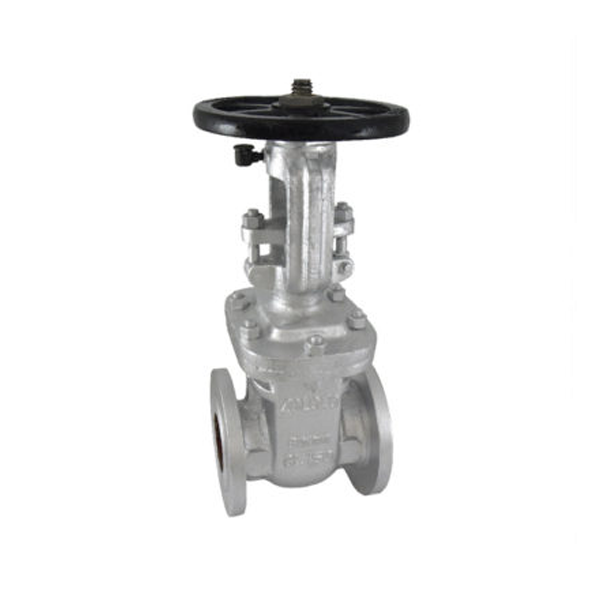

Zoloto - 50 mm Class 150 Cast Steel Flanged Gate Valve is a valve that features an integrally cast body with or without a self-aligning gate and integral flange connection. In addition, the 50 mm Class 150 Cast Steel Flanged Gate Valve has a compact design, making it easy to install in tighter spaces. The Class, 150 Cast Steel Flanged Gate Valve, is designed for pressure service up to its maximum rating and temperature service up to 250°F (121°C). This Cast Steel Flanged Gate Valve easily installs in vertical or horizontal orientations. Zoloto - 50 mm Class 150 Cast Steel Flanged Gate Valve also provides reliable operation even under difficult conditions such as abrasive media, high flow rates, low temperatures, icing, cavitation, and vibration. Gate Valve design is per the Standard BS EN ISO 10434 / API 600.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Material: cast steel
Product: cast steel flanged gate valve
Size: 50 mm
Type: yoke
Test pressure: Shell: 425 psig, Seat:150 psig
Product code: 1077
Body Seat Ring: Stainless Steel
Wedge: Cast Steel
Wedge Facing Ring: Stainless Steel
Stem: Stainless Steel
Studs: Alloy Steel
Nuts: H.T. Steel
Gasket: Steam Jointing Sheet
Back Seat Bush: Aluminium Bronze
Gland Packing: Braided Graphite
Key Features:
Self-aligning gate and integral flange connection
Compact design
Outside Screw, Yoke Type & Rising Stem
Handwheel Operated
