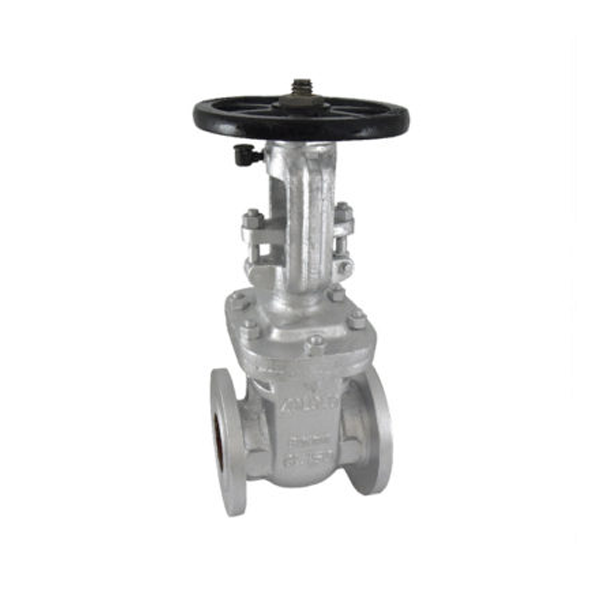

The Zoloto - 100 mm Class 150 Cast Steel Flanged Gate Valve is a sturdy piece of equipment. The 100 mm Class 150 Cast Steel Flanged Gate Valve is built with highly configurable materials and modern techniques while adhering to industry benchmarks. The materials used to manufacture the Class 150 Cast Steel Flanged Gate Valve is sourced from the most trustable and formal operators, who were opted after extensive research and analysis. As a result, the Cast Steel Flanged Gate Valve's high effectiveness is widely known in the market.
Product Specifications:
Brand Name: Zoloto
Maximum Operating Temperature: 425 Degree Celsius
Product Type: Yoke
End Connection: Flanged End
Body Material: Cast Steel
Size: 100 mm
Test Pressure (Hydrostatic):
Shell: 425 psig
Seat: 313 psig
Ideal For: Steam, Water, Oil
Product Code: 1077
Key Features:
Outside Screw, Rising Stem, Yoke Type, Bolted Bonnet.
Operating parts made of 13 per cent Cr. Stainless Steel (S.S. 410).
Handwheel control.
ASME B 16.5 Class-150 Flanged Ends.
