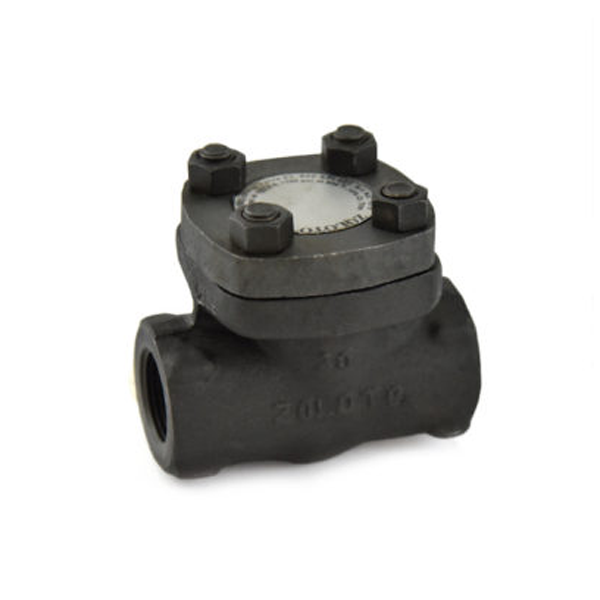

The Zoloto - 50 mm Class 800 Forged Steel Standard Bore Horizontal Check Valve is an excellent device. The high efficiency of the 50 mm Class 800 Forged Steel Standard Bore Horizontal Check Valve is well known in the industry. In addition, Class 800 Forged Steel Standard Bore Horizontal Check Valve is made with high-grade materials and a cutting-edge methodological approach, ensuring that it meets the highest industry standards.
Product Specifications:
Brand Name: Zoloto
Maximum Operating Temperature: 425 Degree Celsius
End Connection: Female Ends
Type: Screwed
Size (mm): 50 mm
Size (Inch): 2 inch
Material:
Body: Forged Carbon Steel
Body Seat Ring: Stainless Steel
Disc: Stainless Steel
Gasket: Spiral Wound (Type 316) Graphite Filled
Cover: Forged Carbon Steel
Identification Plate: Aluminium
Test Pressure (Hydrostatic):
Shell: 3000 psig
Seat: 2200 psig
Ideal For: Water, Steam, Oil
Product Code: 1076
Key Features:
The cover and body are both phosphates for maximum rust resistance.
Cover with Bolts.
Female Ends Screwed to BSPT / NPT / Socket Welded to ANSI B16.11.
